Power capacitor fuses

Introduction

Power capacitor fuses are specialized devices designed to protect power capacitors in electrical systems. These fuses are engineered to handle the unique stresses of capacitor operation, including high inrush currents and fault conditions.

Filter by

14 products

NH

NH00
NH000

Image of NH000 gCP 1kVAr/690V

NH000 gCP 1kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 1 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.8 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 1,5kVAr/690V

NH000 gCP 1,5kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 1.5 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 0.8 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

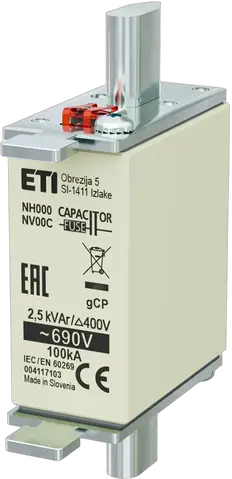

Image of NH000 gCP 2,5kVAr/690V

NH000 gCP 2,5kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 2.5 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 3kVAr/690V

NH000 gCP 3kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 3 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1.3 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 4kVAr/690V

NH000 gCP 4kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 4 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1.3 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 5kVAr/690V

NH000 gCP 5kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 5 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 1.7 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 10kVAr/690V

NH000 gCP 10kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 10 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 2 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 12,5kVAr/690V

NH000 gCP 12,5kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 12.5 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 2.6 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 15kVAr/690V

NH000 gCP 15kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 15 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 2.7 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH000 gCP 20kVAr/690V

NH000 gCP 20kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH000
Time-Current Characteristic: gCP
Reactive power: 20 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 100 kA
Power dissipation: 4 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH00 gCP 25kVAr/690V

NH00 gCP 25kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Time-Current Characteristic: gCP
Reactive power: 25 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 120 kA
Power dissipation: 5 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH00 gCP 30kVAr/690V

NH00 gCP 30kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Time-Current Characteristic: gCP
Reactive power: 30 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 120 kA
Power dissipation: 6 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

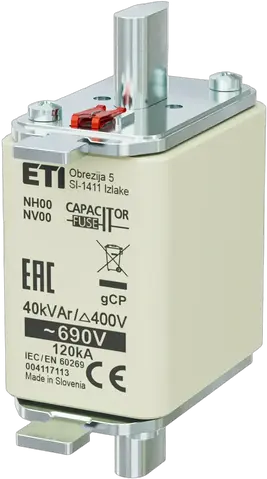

Image of NH00 gCP 40kVAr/690V

NH00 gCP 40kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Time-Current Characteristic: gCP
Reactive power: 40 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 120 kA
Power dissipation: 7.6 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.

Image of NH00 gCP 50kVAr/690V

NH00 gCP 50kVAr/690V

Class name: Fuse link
Fuse type: NH
Size: NH00
Time-Current Characteristic: gCP
Reactive power: 50 kVAr
Indicator: Top fuse status indicator
Rated AC voltage: 690 V
Breaking capacity AC: 120 kA
Power dissipation: 9.1 W
Standards: IEC 60269
Application: Special designed fuse according to rated power of 3 phase capacitor at nominal voltage 400V a.c. 50Hz.
