002173873

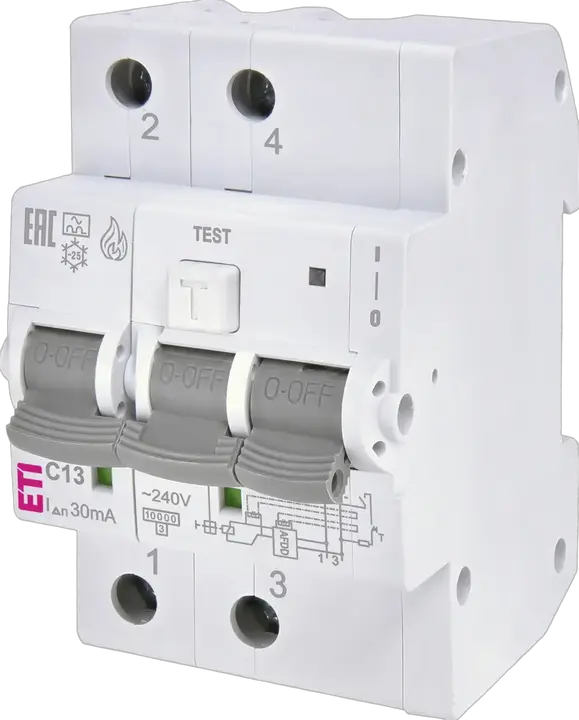

KZS-AFDD 3M2p A C13/0.03 Arc Fault Detection Device
- ETI Code:
- 002173873
- Function:
- RCBO
- Has overvoltage protection:
- Yes
- Rated AC voltage:
- 240 V
- Catalogue Group:
- KZS 3M2p AFDD
- Fault type signalisation:
- LED
- Application:
- IEC/EN 61009-1, IEC/EN 62606
- Connection type:
- universal
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated residual operating current IDn:
- 0.03 A
- Rated current:
- 13 A
- Residual current type:
- A
- Rated residual current:
- 0.03 A
- Tripping characteristic:
- C
- Number of poles:
- 2
- Short circuit capacity:
- 10 kA
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61009-1, IEC/EN 62606
21 Logistics
Product
- Net weight of the product
- 377 g
- Net width
- 53.7 mm
- Net height
- 88.7 mm
- Net depth
- 73.31 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895869214
- Basic packaging weight
- 0.377 kg
- Basic Packaging Dimensions Height
- 0.08 m
- Basic Packaging Dimensions Width
- 0.095 m
- Basic Packaging Dimensions Depth
- 0.056 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 33 pcs
- EAN code for a transport packaging
- 3838895869238
- Transport packaging weight
- 12.791 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,716 pcs
- Customs tariff
- 85362010
20 ETIM
- Built-in depth
- 69 mm
- Leakage current type
- A
- Rated impulse withstand voltage Uimp
- 4 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Rated fault current
- 0.03 A
- Number of poles (total)
- 2
- Frequency
- 50 Hz
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Number of protected poles
- 2
- Rated voltage
- 230 V
- Current limiting class
- 3
- Rated current
- 13 A
- Width in number of modular spacings
- 3
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Ambient temperature during operating(Max)
- 40 °C
ETIM Classification – Version 9.0
