002174223

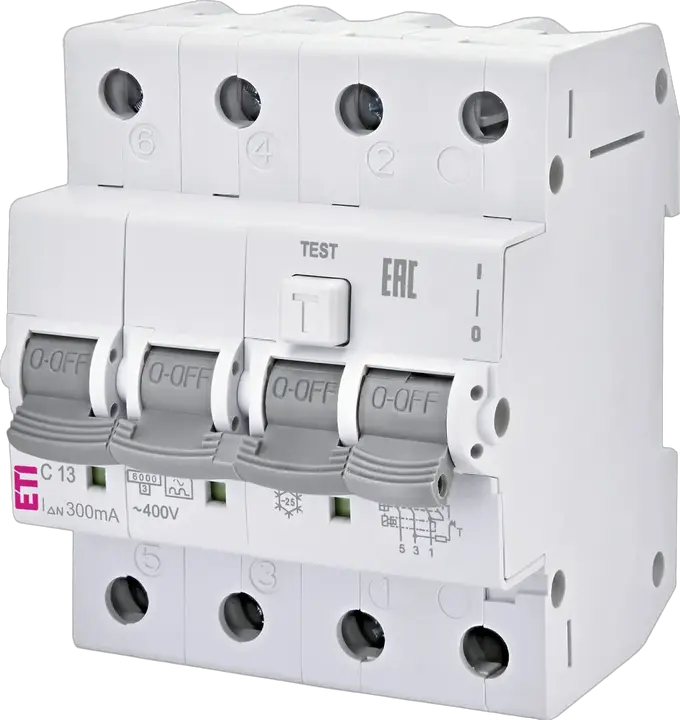

KZS-4M 3p A C13/0.3 RCBO
- ETI Code:
- 002174223
- Function:
- RCBO
- Rated AC voltage:
- 415 V
- Catalogue Group:
- KZS-4M 3p Residual current circuit breakers with
- Fault type signalisation:
- No
- Application:
- IEC/EN 61009
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated residual operating current IDn:
- 0.3 A
- Rated current:
- 13 A
- Residual current type:
- A
- Rated residual current:
- 0.3 A
- Tripping characteristic:
- C
- Number of poles:
- 3
- Short circuit capacity:
- 10 kA
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61009
21 Logistics
Product
- Net weight of the product
- 482 g
- Net width
- 70.4 mm
- Net height
- 89.8 mm
- Net depth
- 72.78 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895794905
- Basic packaging weight
- 0.507 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.074 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 27 pcs
- EAN code for a transport packaging
- 3838895794912
- Transport packaging weight
- 14.039 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,404 pcs
- Customs tariff
- 85362010
