002174494

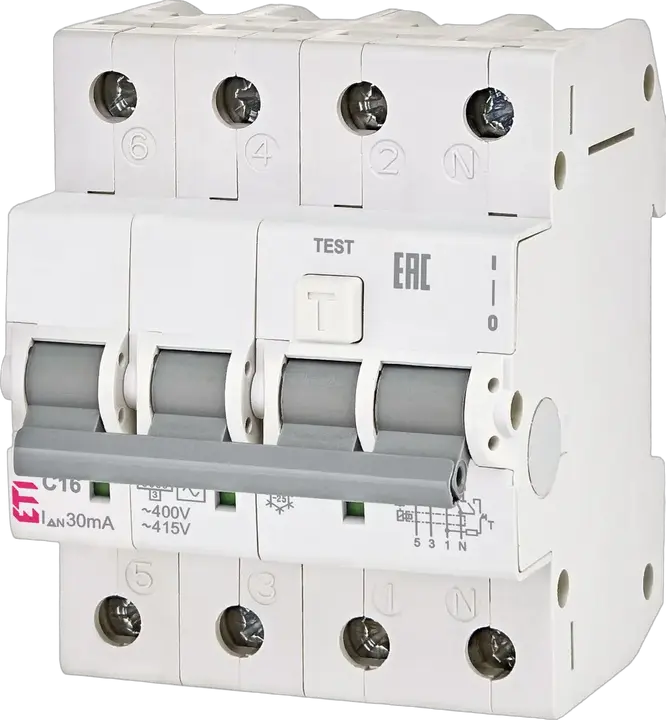

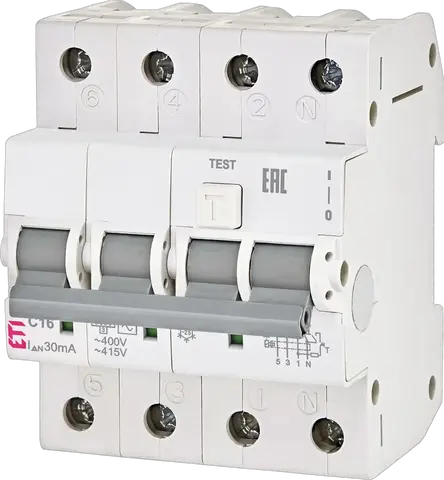

KZS-4M 3p+N A C16/0.03 120V RCBO
- ETI Code:
- 002174494
- Rated AC voltage:
- 230 V
- Application:
- 61009-1
- Rated residual operating current IDn:
- 0.03 A
- Rated current:
- 16 A
- Rated residual current:
- 0.03 A
- Tripping characteristic:
- C
- Number of poles:
- 3+N
- Short circuit capacity:
- 6 kA
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 125 mm²
- Standards:
- 61009-1
21 Logistics
Product
- Net weight of the product
- 515 g
- Net width
- 70.4 mm
- Net height
- 89.8 mm
- Net depth
- 72.78 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895914075
- Basic packaging weight
- 0.54 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.074 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 27 pcs
- EAN code for a transport packaging
- 3838895914082
- Transport packaging weight
- 14.93 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,404 pcs
- Customs tariff
- 85362010
28 ETIM
- Rated insulation voltage Ui
- 500 V
- Built-in depth
- 70 mm
- Leakage current type
- A
- Surge current capacity
- 0.25 kA
- Voltage type
- AC
- Rated impulse withstand voltage Uimp
- 4 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Over voltage category
- 3
- Rated fault current
- 0.03 A
- Number of poles (total)
- 4
- Disconnection characteristic
- Undelayed
- Pollution degree
- 2
- Frequency
- 50/60 Hz
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 3
- Rated voltage
- 230 V
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to IEC 60947-2
- 6 kA
- Rated current
- 16 A
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 6 kA
- Ambient temperature during operating(Min)
- -25 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
- Ambient temperature during operating(Max)
- 40 °C
ETIM Classification – Version 9.0
