002174525

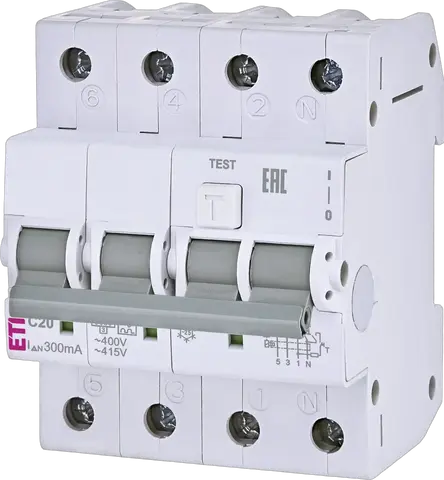

KZS-4M 3p+N A C20/0.3 RCBO
- ETI Code:
- 002174525
- Function:
- RCBO
- Rated AC voltage:
- 415 V
- Catalogue Group:
- KZS-4M 3p+N Residual current circuit breakers wit
- Fault type signalisation:
- No
- Application:
- IEC/EN 61009
- Rated conditional short-circuit current Inc:
- 6 kA
- Rated residual operating current IDn:
- 0.3 A
- Rated current:
- 20 A
- Residual current type:
- A
- Rated residual current:
- 0.3 A
- Tripping characteristic:
- C
- Number of poles:
- 3+N
- Short circuit capacity:
- 6 kA
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61009
7 Documents
21 Logistics
Product
- Net weight of the product
- 515 g
- Net width
- 70.4 mm
- Net height
- 89.8 mm
- Net depth
- 72.78 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895795810
- Basic packaging weight
- 0.54 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.074 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 27 pcs
- EAN code for a transport packaging
- 3838895795827
- Transport packaging weight
- 14.93 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,404 pcs
- Customs tariff
- 85362010
18 ETIM
- Built-in depth
- 69 mm
- Leakage current type
- A
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Rated fault current
- 0.3 A
- Number of poles (total)
- 4
- Frequency
- 50/60 Hz
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 3
- Rated voltage
- 400 V
- Current limiting class
- 3
- Rated current
- 20 A
- Width in number of modular spacings
- 4
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 25 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
ETIM Classification – Version 9.0
