002176013

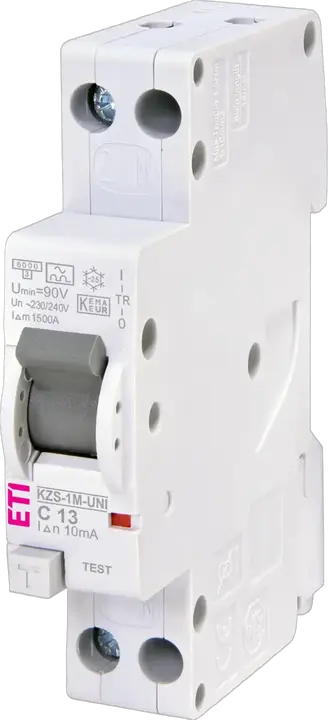

KZS-1M-UNI 1p+N A C13/0.01 RCBO
- ETI Code:
- 002176013
- Rated AC voltage:
- 240 V
- Application:
- EN/IEC 61009-1
- Rated residual operating current IDn:
- 0.01 A
- Rated current:
- 13 A
- Residual current type:
- A
- Rated residual current:
- 0.01 A
- Tripping characteristic:
- C
- Number of poles:
- 1+N
- Short circuit capacity:
- 6 kA
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 110 mm²
- Standards:
- EN/IEC 61009-1
24 Logistics
Product
- Net weight of the product
- 0.115 kg
- Net width
- 17.9 mm
- Net height
- 88.2 mm
- Net depth
- 73.97 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400098184
- Basic packaging weight
- 0.123 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 20 mm
- Basic packaging volume
- 0.136 dm³
Transport Packaging
- Intermediate packaging quantity
- 12 pcs
- EAN code for a intermediate packaging
- 3838400098191
- Intermediate packaging weight
- 1.476 kg
- Transport packaging quantity
- 72 pcs
- EAN code for a transport packaging
- 3838400098207
- Transport packaging weight
- 9.206 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 3,744 pcs
- Customs tariff
- 85362010
28 ETIM
- Rated insulation voltage Ui
- 250 V
- Built-in depth
- 70 mm
- Leakage current type
- A
- Voltage type
- AC
- Rated impulse withstand voltage Uimp
- 4 kV
- Degree of protection (IP)
- IP20
- Release characteristic
- C
- Over voltage category
- 3
- Rated fault current
- 0.01 A
- Number of poles (total)
- 2
- Disconnection characteristic
- Undelayed
- Pollution degree
- 2
- Frequency
- 50/60 Hz
- Rated short-circuit breaking capacity according to EN 61009
- 6 kA
- Concurrently switching neutral conductor
- Yes
- Number of protected poles
- 1
- Rated voltage
- 240 V
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to IEC 60947-2
- 6 kA
- Rated current
- 13 A
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 6 kA
- Width in number of modular spacings
- 1
- Ambient temperature during operating(Min)
- -35 °C
- Connectable conductor cross section solid-core(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section solid-core(Max)
- 10 mm²
- Connectable conductor cross section multi-wired(Max)
- 10 mm²
- Ambient temperature during operating(Max)
- 40 °C
ETIM Classification – Version 9.0
