743216104
Obsolete

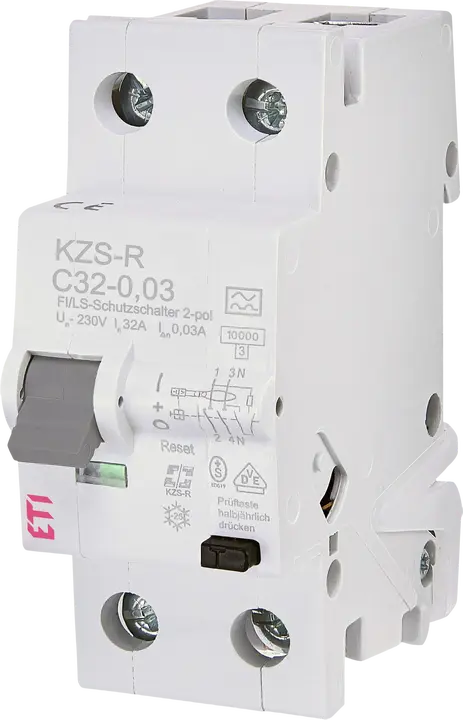

* KZS-R 1p+N A C32/0.03 RCBO
- ETI Code:
- 743216104
- Function:
- RCBO
- Rated AC voltage:
- 230 V
- Application:
- IEC/EN 61009
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated residual operating current IDn:
- 0.03 A
- Rated current:
- 32 A
- Residual current type:
- A
- Rated residual current:
- 0.03 A
- Tripping characteristic:
- C
- Number of poles:
- 1+N
- Short circuit capacity:
- 10 kA
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61009
10 Logistics
Product
- Net weight of the product
- 1 g
- Net width
- 35 mm
- Net height
- 90 mm
- Net depth
- 75 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400008213
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400066596
- Customs tariff
- 85362010
2 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
22 Tags
743216104RCBO* KZS-R 1p+N A C32/0.03ASTIRCBOKZS-2M30mAType ACInternationalModular current and residual protective devices ASTIResidual and overcurrent protection RCBO and accessories KZSResidual and overcurrent protection RCBOTripping characteristic: CNumber of poles: 1+NShort circuit capacity: 10 kA/10 kARated cross section: 1 mm²-25 mm²Residual current type: AStandards: IEC/EN 61009Rated current: 32 A/32 ARated residual current: 0.03 ARCBO Rated current: 32 A/32 A Residual current type: A Rated residual current: 0.03 A Tripping characteristic: C Number of poles: 1+N Short circuit capacity: 10 kA/10 kA
