004656844

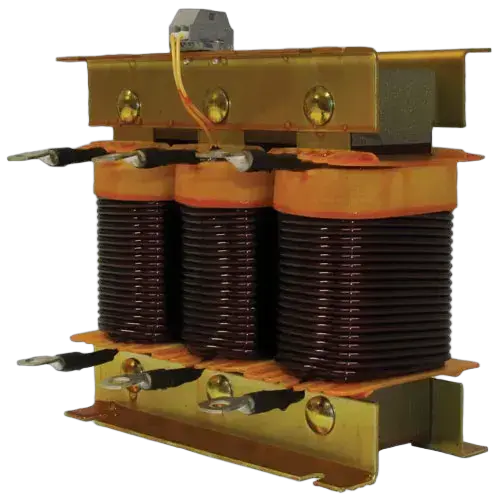

HFL 5,67/50 Al Detuning reactor
- ETI Code:
- 004656844
- Type description:
- aluminum wire
- Filtering factor:
- 0.057 %
- Reactive power:
- 50 kVAr
3 Documents
8 Logistics
Product
- Net weight of the product
- 26.1 kg
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895741008
- Transport packaging weight
- 26.1 kg
- Transport packaging volume
- 9.72 dm³
- Pallet quantity
- 20 pcs
- Customs tariff
- 85049013
