This product is obsolete and does not have a direct substitute, please contact our technical support in order to find a suitable replacement.

002445325 Obsolete

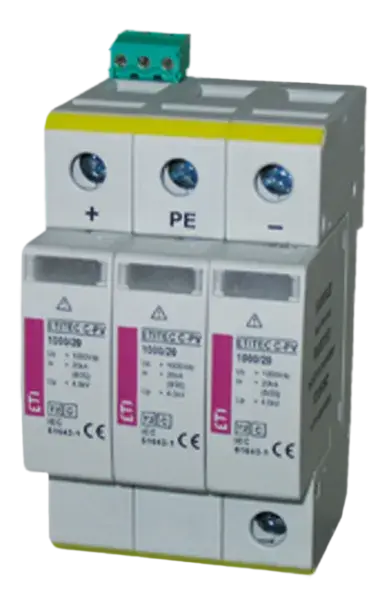

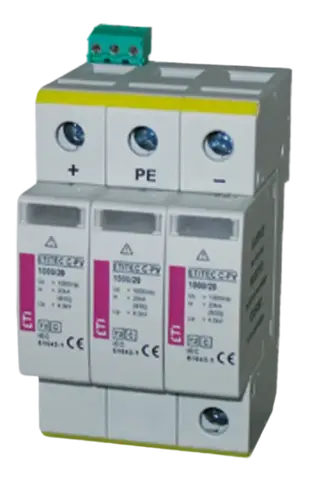

Image of *MOD.ETITEC S C-PV 1200/20 Y

*MOD.ETITEC S C-PV 1200/20 Y Surge arrester

ETI Code:: 002445325
Function:: SPD Module
Catalogue Group:: ETITEC S C PV
Installation:: PV protection
IP rating:: IP20
Leakage Current:: Yes
Applied Technology:: MOV
Surge arrester type:: T2
Uc Continous Operating Voltage DC:: 1,200 V
To use with:: ETITEC S C PV
Current type:: DC
Nominal Discharge Current (8/20 μs) In:: 20 kA

Product

EAN code for a single product: 3838400060365
Net weight of the product: 78 g
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 12 pcs
EAN code for a basic packaging: 3838895635635
Basic packaging weight: 0.078 kg
Basic packaging volume: 0.64 dm³

Transport Packaging

Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838895635642
Transport packaging weight: 0.156 kg
Transport packaging volume: 1.28 dm³
Pallet quantity: 33,744 pcs
Customs tariff: 85363090

Max. discharge surge current (8/20): 40 kA
Max. continuous voltage DC: 1,200 V
Degree of protection (IP): IP20
Mounting method: On basic element
Construction size: 1 modular spacing
Short-circuit breaking capacity (Isccr): 0.2 kA
Signalling at the device: Optical
Category type 2: Yes
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Yes

ETIM Classification – Version 9.0
