PV surge arrestors, also known as surge protective devices (SPDs), are critical for safeguarding photovoltaic (PV) systems from overvoltage events caused by lightning strikes or other electrical disturbances. These devices are designed to limit the voltage and divert the surge current away from sensitive PV equipment, such as solar panels and inverters, thus preventing damage and ensuring the long-term reliability of the system.

002443005

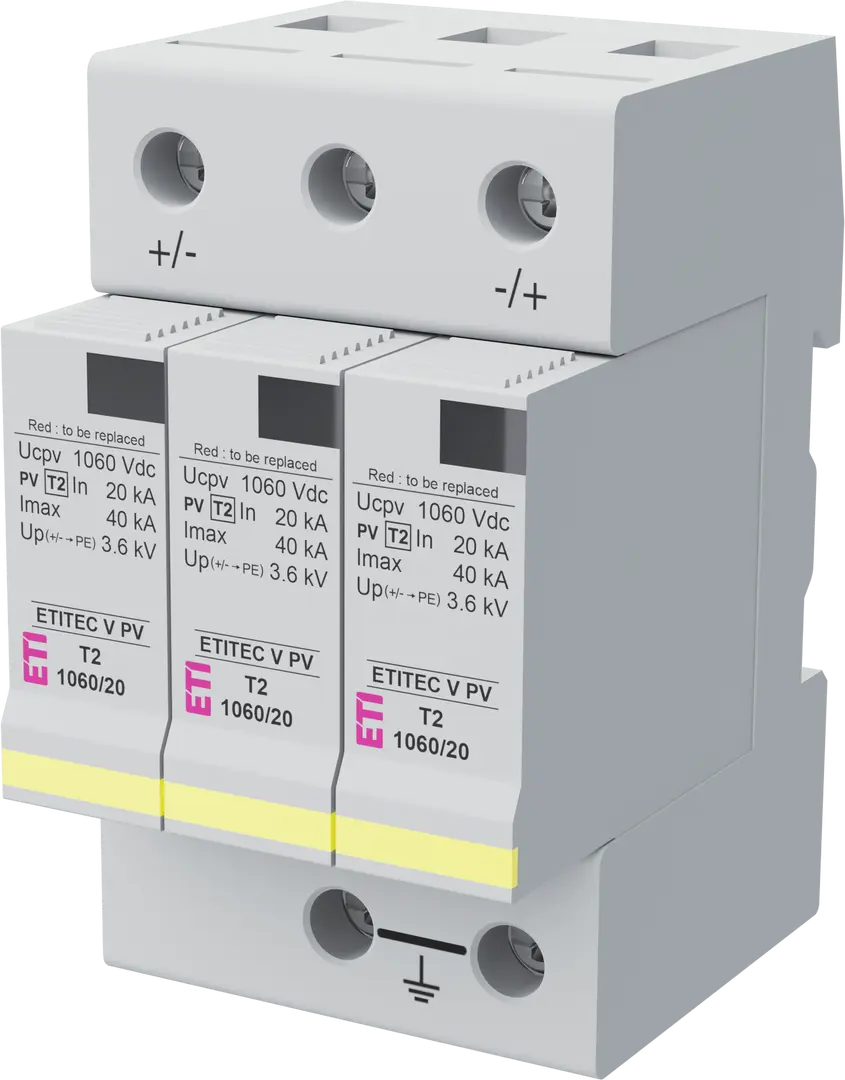

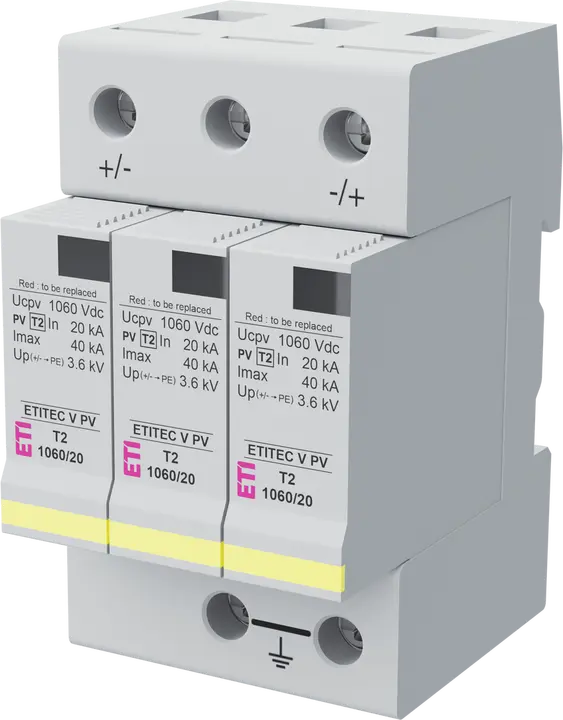

Image of ETITEC V PV T2 1060/20

ETITEC V PV T2 1060/20 Surge arrester

ETI Code:: 002443005
Function:: SPD
Current type:: DC
Surge arrester type:: T2
Uc Continous Operating Voltage DC:: 1,060 V
Nominal Discharge Current (8/20 μs) In:: 20 kA
Max. Discharge current Imax, 8/20:: 40 kA
Up - Voltage Protection Level:: 3.6 kV
Remote signalisation:: No
Leakage Current:: Yes
Number of modules:: 3
Installation:: DIN
Built-in depth:: 67 mm
Applied Technology:: MOV
IP rating:: IP40
Catalogue Group:: ETITEC PV

Technical data catalog

Product

Net weight of the product: 0.289 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400182227
Basic packaging weight: 0.31 kg
Basic Packaging Dimensions Height: 57 mm
Basic Packaging Dimensions Width: 70 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0.399 dm³

Transport Packaging

Intermediate packaging quantity: 3 pcs
EAN code for a intermediate packaging: 3838400182210
Intermediate packaging weight: 1.031 kg
Intermediate Packaging Dimensions Height: 105 mm
Intermediate Packaging Dimensions Width: 78 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838400182203
Transport packaging weight: 14.644 kg
Transport Packaging Dimensions Height: 210 mm
Transport Packaging Dimensions Width: 290 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28.014 dm³
Pallet quantity: 1,440 pcs
Customs tariff: 85363030

System configuration other: Yes
Max. discharge surge current (8/20): 40 kA
Number of conductors (without earthing): 2
Degree of protection (IP): IP40
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 3 modular spacing
Nominal voltage DC: 1,000 V
Max. PV-voltage: 1,060 V
Signalling at the device: Optical
Nominal discharge surge current (8/20): 20 kA
System configuration DC: Yes

ETIM Classification – Version 9.0
