002440580

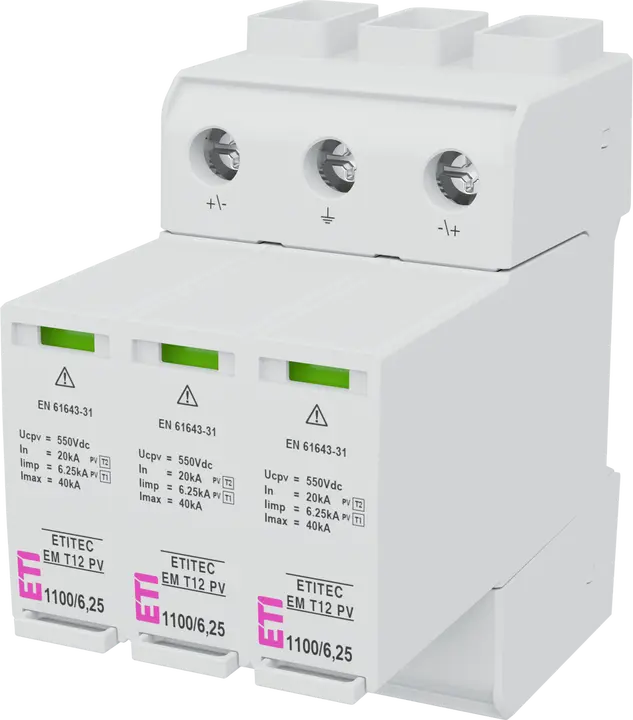

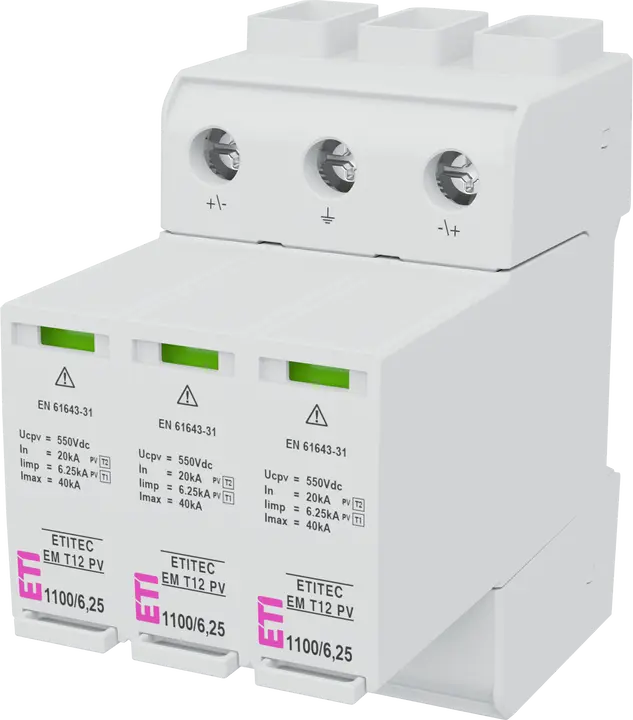

ETITEC EM T12 PV 1100/6,25 Y Surge arrester
- ETI Code:
- 002440580
- Function:
- SPD
- Current type:
- DC
- Connectable conductor cross section solid-core:
- 35 mm²
- Surge arrester type:
- T1, T2
- Uc Continous Operating Voltage DC:
- 1,100 V
- Iimp(10/350) Impulse Current:
- 6.25 kA
- Iimp - Total Impulse Current (10/350):
- 625 kA
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Max. Discharge current Imax, 8/20:
- 40 kA
- Up - Voltage Protection Level:
- 3.8 kV
- Remote signalisation:
- No
- Leakage Current:
- Yes
- Network system:
- DC
- Number of modules:
- 3
- Installation:
- PV protection
- Built-in depth:
- 86 mm
- Applied Technology:
- MOV
- IP rating:
- IP20
- Catalogue Group:
- ETITEC EM PV
21 Logistics
Product
- Net weight of the product
- 0.397 kg
- Net width
- 54 mm
- Net height
- 101.2 mm
- Net depth
- 95.63 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895852957
- Basic packaging weight
- 0.457 kg
- Basic Packaging Dimensions Height
- 102 mm
- Basic Packaging Dimensions Width
- 65 mm
- Basic Packaging Dimensions Depth
- 110 mm
- Basic packaging volume
- 0.729 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895852964
- Transport packaging weight
- 2.366 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 1,130 pcs
- Customs tariff
- 85363090
14 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1,100 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Lightning impulse current (10/350 µs)
- 6.25 kA
- Specific energy (W/R)
- 9.77 kJ/Ohm
- Voltage protection level
- 3.8 kV
- Max. PV-voltage
- 916 V
- Number of poles
- 2
- Signalling at the device
- Optical
- System configuration DC
- Yes
ETIM Classification – Version 9.0
