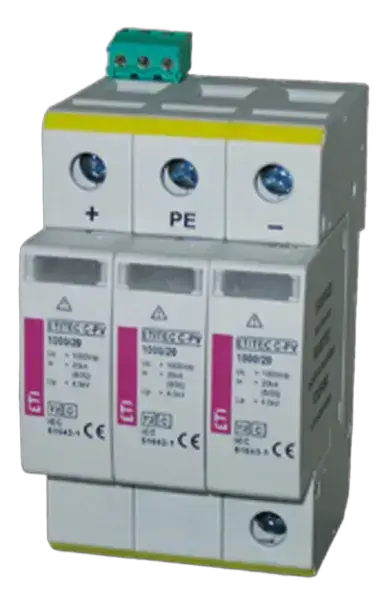

*ETITEC S C-PV 1200/20 Y Surge arrester
- ETI Code:
- 002445311
- Function:
- SPD
- Current type:
- DC
- Connectable conductor cross section solid-core:
- 35 mm²
- Surge arrester type:
- T2
- Uc Continous Operating Voltage DC:
- 1,200 V
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
- Up - Voltage Protection Level:
- 4.4 kV
- Remote signalisation:
- No
- Leakage Current:
- No
- Network system:
- PV
- Number of modules:
- 3
- Installation:
- PV protection
- Built-in depth:
- 68 mm
- Applied Technology:
- MOV, GDT
- IP rating:
- IP20
- Catalogue Group:
- ETITEC S C PV
2 Documents
12 Logistics
Product
- Net weight of the product
- 388 g
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895635475
- Basic packaging weight
- 0.388 kg
- Basic packaging volume
- 0.35 dm³
Transport Packaging
- Transport packaging quantity
- 5 pcs
- EAN code for a transport packaging
- 3838895635482
- Transport packaging weight
- 1.94 kg
- Transport packaging volume
- 1.75 dm³
- Pallet quantity
- 2,060 pcs
- Customs tariff
- 85363090
15 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. discharge surge current (8/20)
- 40 kA
- Number of conductors (without earthing)
- 2
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Max. continuous voltage DC
- 1,200 V
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail (top hat rail) 35 mm
- Construction size
- 3 modular spacing
- Short-circuit breaking capacity (Isccr)
- 0.2 kA
- Voltage protection level
- 4.4 kV
- Max. PV-voltage
- 1,000 V
- Signalling at the device
- Optical
- Category type 2
- Yes
- Nominal discharge surge current (8/20)
- 20 kA
- System configuration DC
- Yes
