004661555

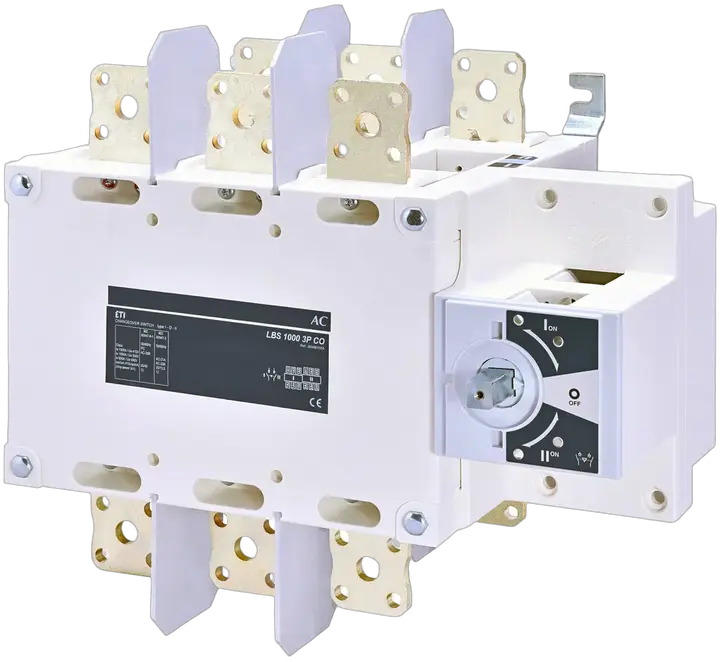

LBS 1000 3P CO Changeover switch
- ETI Code:
- 004661555
- Rated current:
- 1000 A
- Type of Installation:
- Base plate mounting
- Number of poles:
- 3
- Thermal current Ith:
- 1,000 A
- Rated operational current Ie AC-21 A/B at 415V:
- 1000 A
- Rated Insulation Voltage:
- 1,000 V
- Max. rated operational voltage (AC):
- 690 V
- Catalogue Group:
- Load Break Change Over Switch LBS..CO
14 Logistics
Product
- Net weight of the product
- 20 kg
- Net width
- 386 mm
- Net height
- 370 mm
- Net depth
- 327.04 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895719687
- Transport packaging weight
- 20 kg
- Transport Packaging Dimensions Height
- 600 mm
- Transport Packaging Dimensions Width
- 510 mm
- Transport Packaging Dimensions Depth
- 510 mm
- Transport packaging volume
- 156.06 dm³
- Pallet quantity
- 6 pcs
- Customs tariff
- 85365080
9 ETIM
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 415 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 1,000 A
- Type of control element
- Toggle
- Number of poles
- 3
- Rated operation power at AC-23, 400 V
- 560 kW
- Version as main switch
- Yes
ETIM Classification – Version 9.0
