004661561

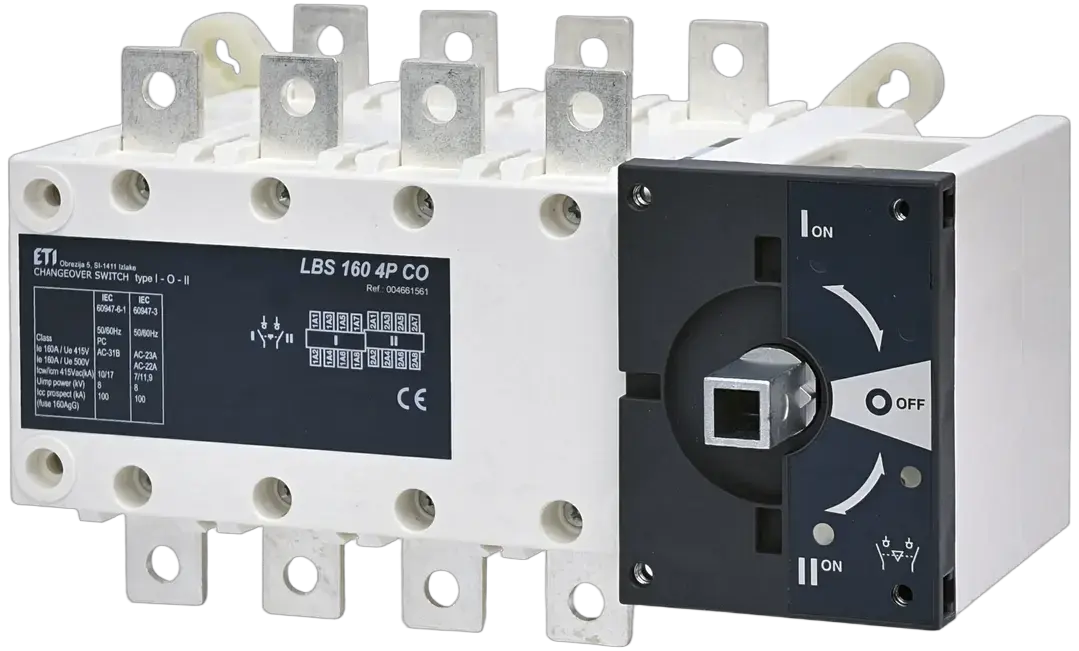

LBS 160 4P CO Changeover switch
- ETI Code:
- 004661561
- Type of Installation:
- Base plate mounting
- Rated current:
- 160 A
- Number of poles:
- 4
- Thermal current Ith:
- 160 A
- Rated operational current Ie AC-21 A/B at 415V:
- 160 A
- Rated Insulation Voltage:
- 800 V
- Max. rated operational voltage (AC):
- 690 V
- Catalogue Group:
- Load Break Change Over Switch LBS..CO
14 Logistics
Product
- Net depth
- 173 mm
- Net weight of the product
- 3.73 kg
- Net width
- 251 mm
- Net height
- 135 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging weight
- 3.73 kg
- Transport packaging volume
- 10.561 dm³
- Transport packaging quantity
- 1 pcs
- Customs tariff
- 85365080
- Transport Packaging Dimensions Height
- 211 mm
- Transport Packaging Dimensions Width
- 286 mm
- Transport Packaging Dimensions Depth
- 175 mm
- EAN code for a transport packaging
- 3838895719748
- Pallet quantity
- 100 pcs
9 ETIM
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 415 V
- Suitable for floor mounting
- Yes
- Rated permanent current Iu
- 160 A
- Type of control element
- Toggle
- Number of poles
- 4
- Rated operation power at AC-23, 400 V
- 80 kW
- Version as main switch
- Yes
ETIM Classification – Version 9.0
