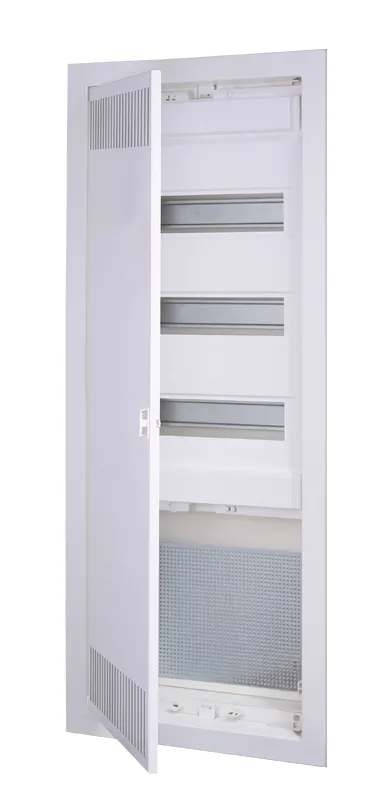

Distribution box ECG70HCOMBO2/3-I_FR 001100161
Specifications
- ETI Code:
- 001100161
- Description:
- ECG70HCOMBO2/3-I_FR
- Class name:
- Distribution box
- Protection Class:
- II
- Mounting type:
- Flush-mounted/hollow wall
- IP rating:
- IP30
- Frame size (Number of rows):
- 5
- Door (material, color):
- metal-perforated,white
Documents
Logistic Data
Product
- Net weight of the product
- 5 kg
- Customs tariff
- 85381000
- logis_net_width
- 425 mm
- logis_net_height
- 842 mm
- logis_net_depth
- 94 mm
Transport packaging
- Transport packaging quantity
- 1
- EAN code for a transport packaging
- 3838895852087
- Transport packaging weight
- 5 kg
- Pallet quantity
- 34
ETIM Clasification
- Classification
- EC000214
- Class name
- Small distribution board
- Mounting method
- Flush-mounted (plaster)
- Number of rows
- 3
- Width in number of modular spacings
- 14
- Height
- 842mm
- Width
- 346mm
- Depth
- 87mm
- Built-in depth
- 88mm
- DIN-rail
- Yes
- With mounting plate
- Yes
- EMC-version
- Yes
- Degree of protection (IP)
- IP30
ECG70HCOMBO2/3-I_FR
