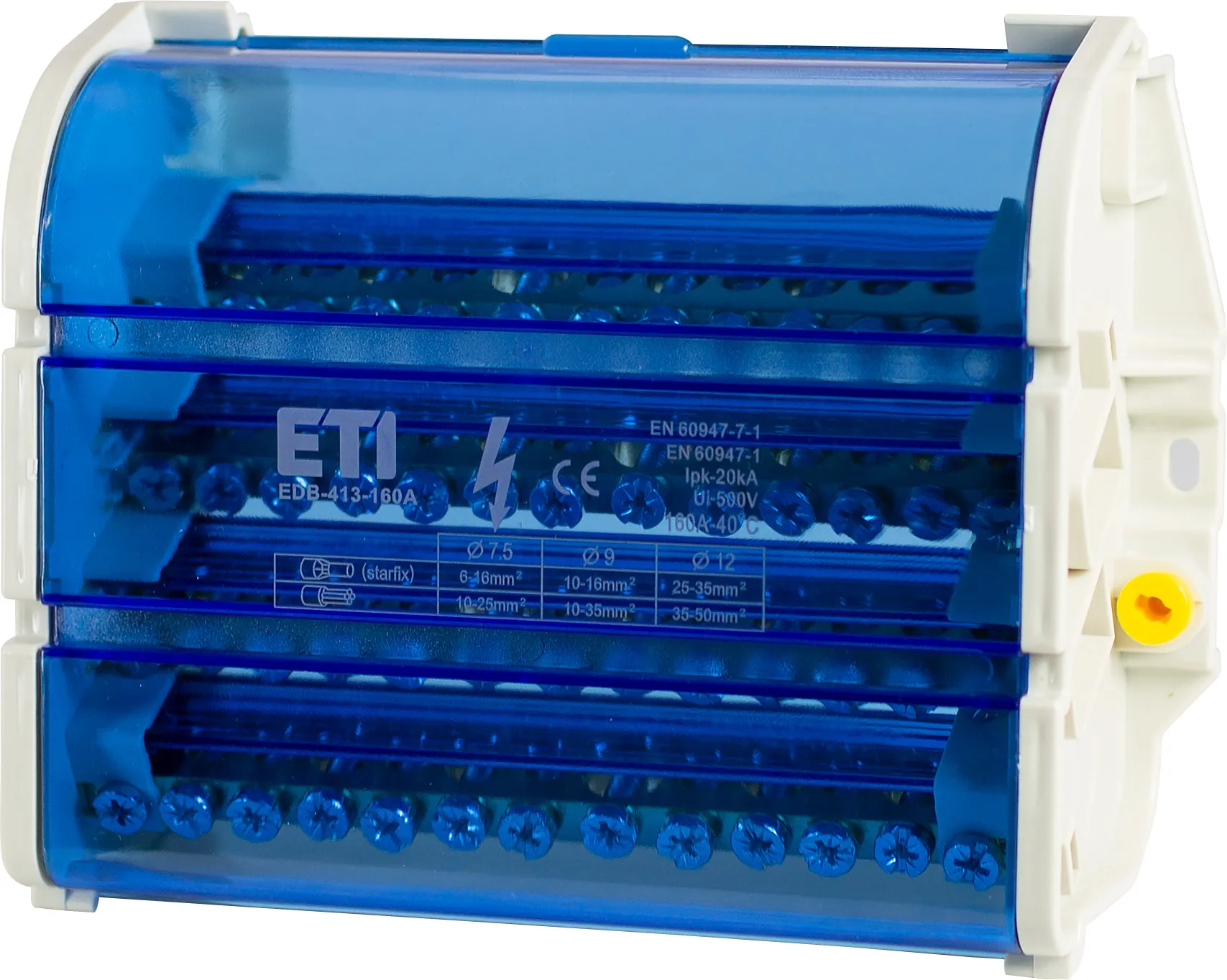

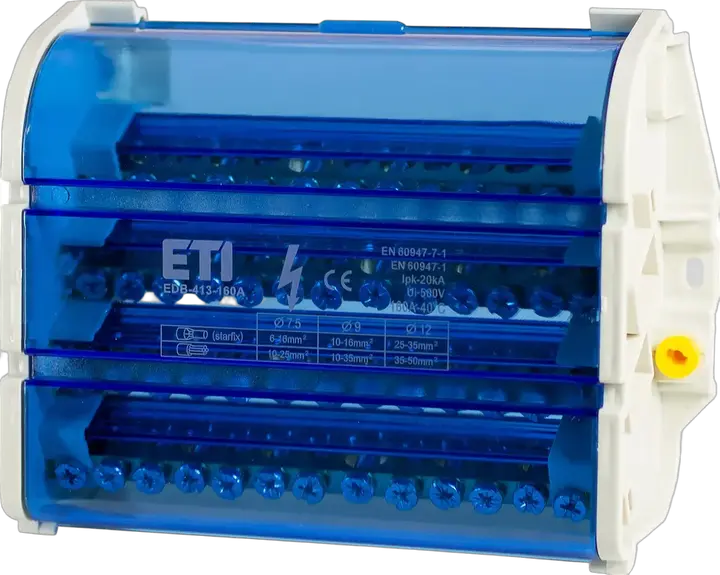

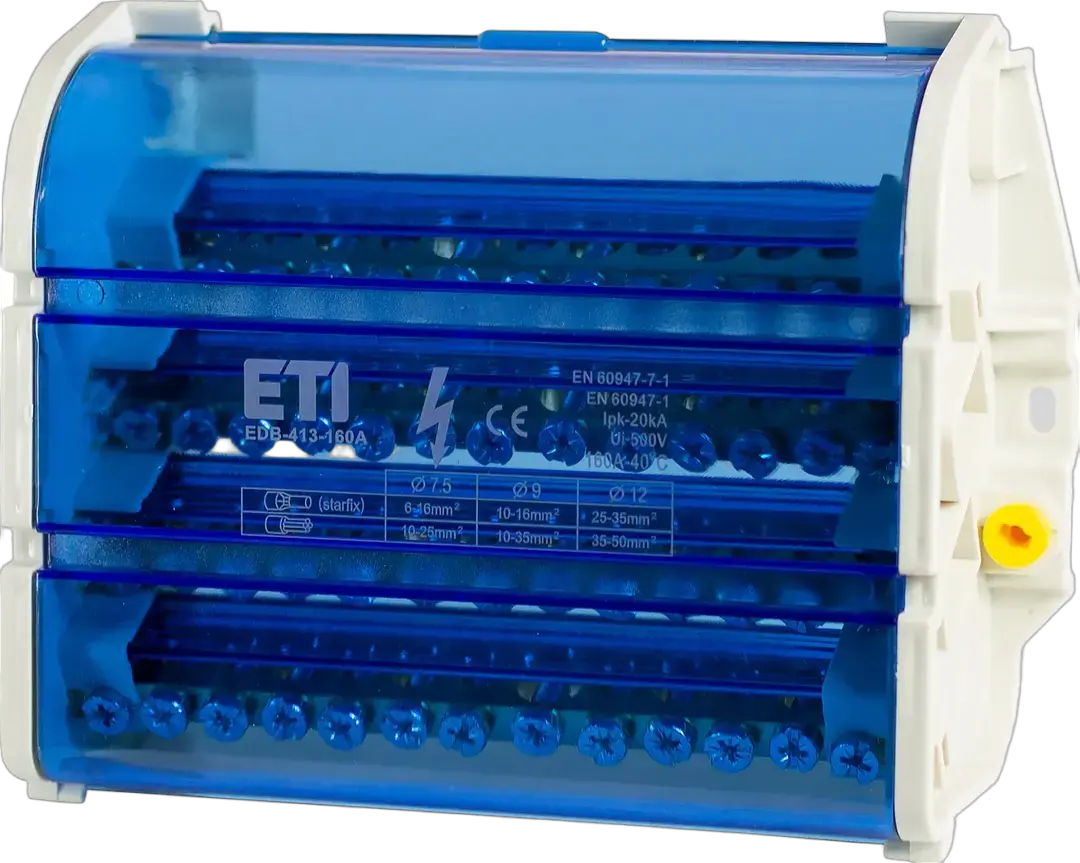

Distribution block EDB-413-160A 001102310
Specifications
- ETI Code:
- 001102310
- Description:
- EDB-413-160A
- Class name:
- Distribution block
- Working temperature (°C):
- -30°C-85°C
- Mounting type:
- TH 35
- Rated current (A):
- 160A
- Rated insulation voltage (V):
- 500V
- Short circuit capacity (kA):
- 20kA
- Number of terminals:
- 4x13
- Height (mm):
- 73mm
- Width (mm):
- 180mm
- Depth (mm):
- 138mm
- Rated cross section:
- 6mm²
- Body material:
- PA
- Clamp material:
- MO-57
Documents
Logistic Data
Product
- Net weight of the product
- 0.7 kg
- Customs tariff
- 85369010
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838400000309
- Basic packaging weight
- 0.9 kg
Transport packaging
- Transport packaging quantity
- 20
- EAN code for a transport packaging
- 3838400000316
- Transport packaging weight
- 18 kg
- Pallet quantity
- 400
ETIM Clasification
- Classification
- EC001284
- Class name
- Single- and multi-pole terminal strip
- Connectable conductor cross section fine-strand without cable end sleeve
- 10…50mm²
- Connectable conductor cross section fine-strand with cable end sleeve
- 6…35mm²
- Rated current In
- 160A
- Rated voltage
- 400V
- Type of electrical connection 1
- Screw connection
- Number of poles
- 4
- Number of clamp positions per pole
- 13
- Mounting method
- Other
- Closing plate required
- No
- Colour
- Other
- Transparent
- Yes
