002470013

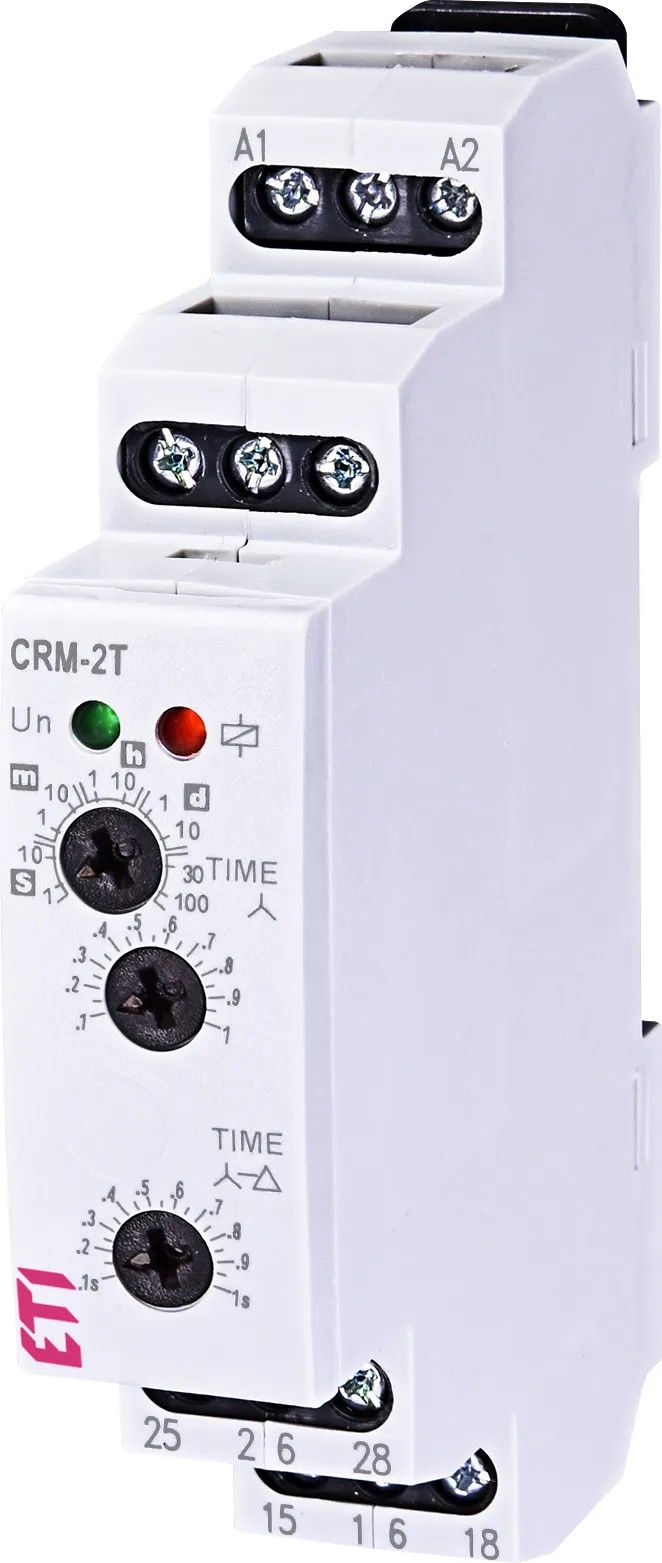

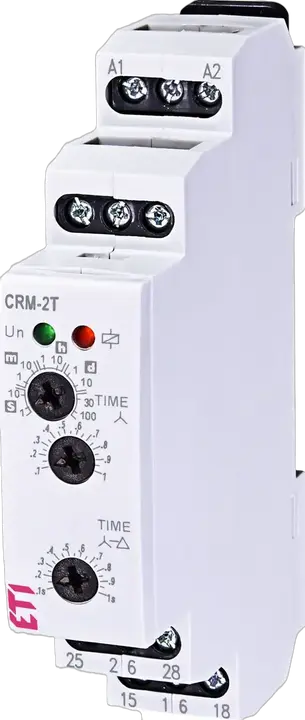

CRM-2T UNI Time relay
- ETI Code:
- 002470013
- Time range:
- 0.1 s-100 days
- Function:
- Time relay
- Application:
- Star-delta starting of three-phase motors
- Type of control:
- Time
- Supply voltage:
- 12-240 V
- Voltage type:
- AC/DC
- Max. contact current:
- 16 A
- Rated current:
- 16 A
- Rated frequency:
- 50/60 Hz
- Max. load capacity at AC1:
- 4,000 VA
- Clamping cross-section:
- 1.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP40, IP20
- No. of NO contacts:
- 2
- No. of CO contacts:
- 2
- No. of NC contacts:
- 2
7 Documents
21 Logistics
Product
- Net weight of the product
- 0.098 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.09 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895241553
- Basic packaging weight
- 0.093 kg
- Basic Packaging Dimensions Height
- 25 mm
- Basic Packaging Dimensions Width
- 97 mm
- Basic Packaging Dimensions Depth
- 70 mm
- Basic packaging volume
- 0.19 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895241560
- Transport packaging weight
- 0.98 kg
- Transport Packaging Dimensions Height
- 102 mm
- Transport Packaging Dimensions Width
- 284 mm
- Transport Packaging Dimensions Depth
- 75 mm
- Transport packaging volume
- 2.173 dm³
- Pallet quantity
- 4,600 pcs
- Customs tariff
- 85364900
15 ETIM
- 1st interval unit
- Seconds/hours
- 2nd interval unit
- Seconds/minutes
- Mounting method
- DIN rail
- Voltage type (supply voltage)
- AC/DC
- Type of excitation
- Digital with single function
- Built-in height
- 65 mm
- Number of changeover switches
- 2
- Function
- Operating and release delay
- Width in number of modular spacings
- 1
- Supply voltage(Min)
- 12 V
- 2nd interval(Min)
- 0.1
- 1st interval(Min)
- 1
- 2nd interval(Max)
- 0.02
- Supply voltage(Max)
- 240 V
- 1st interval(Max)
- 2,400
ETIM Classification – Version 9.0
