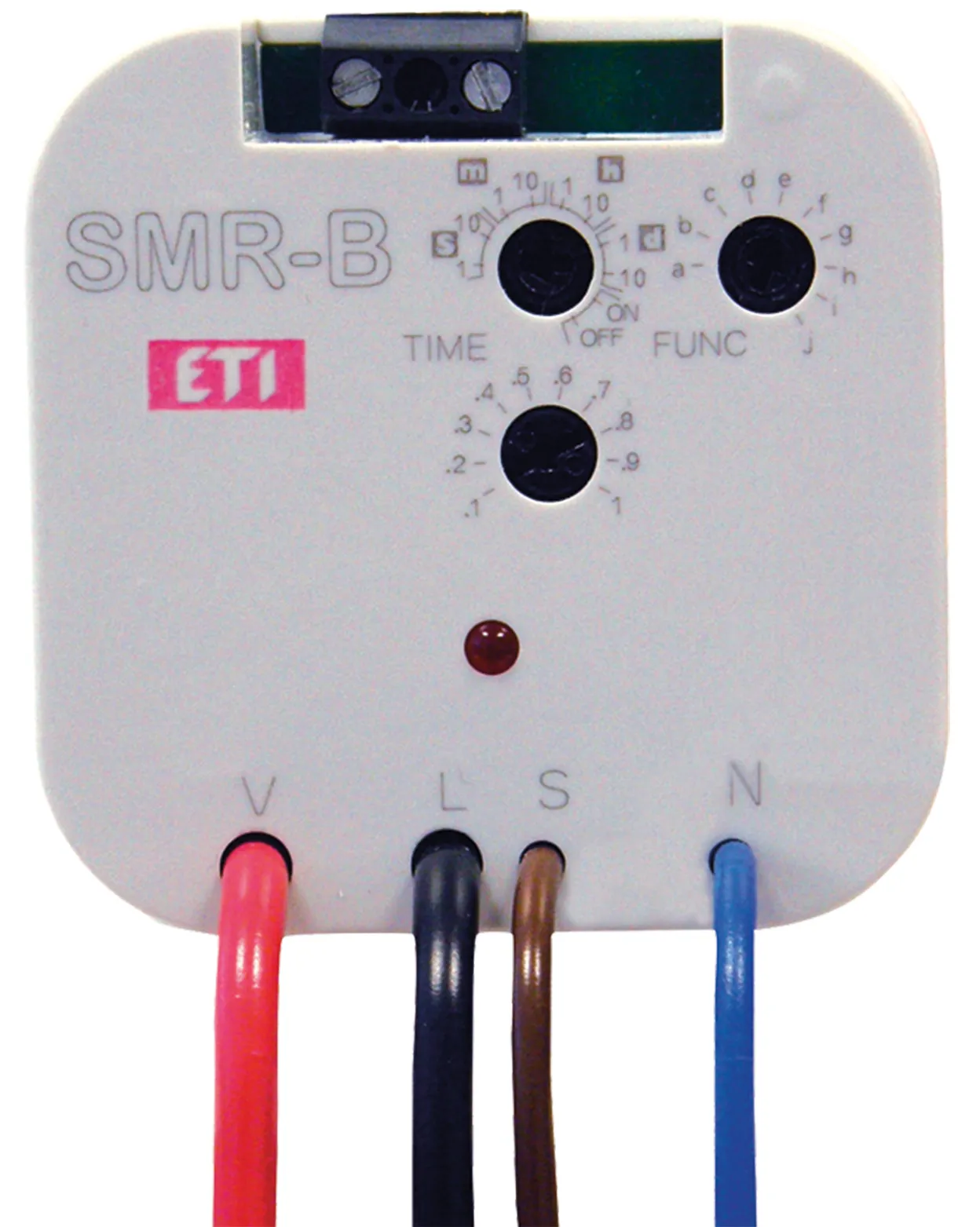

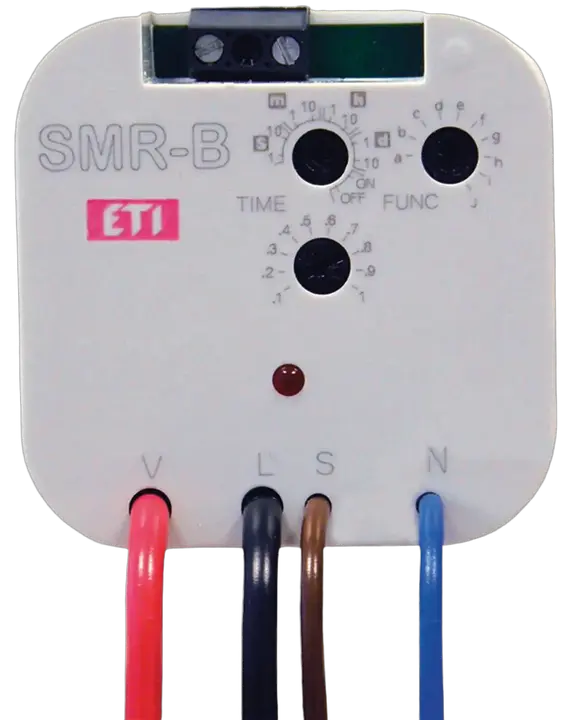

SMR-B Time relay

ETI Code:: 002470021
Time range:: 0.1 s-10 days
Function:: Time relay
Application:: Przeznaczony jest do realizacji funkcji czasowych, impulsowych i bistabilnych w instalacjach elektrycznych oraz systemach automatyki budynkowej.
Type of control:: Multifunction timer
Supply voltage:: 5-230 V
Voltage type:: AC/DC
Max. contact current:: 16 A
Rated current:: 8/16 A
Max. load capacity at AC1:: 4,000 VA
Clamping cross-section:: 0.25-0.75 mm²
Type of installation:: Flush mounting
IP rating:: IP30
No. of NO contacts:: 1

Product

Net weight of the product: 0.051 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838895452218
Basic packaging weight: 0.07 kg
Basic Packaging Dimensions Height: 102 mm
Basic Packaging Dimensions Width: 82 mm
Basic Packaging Dimensions Depth: 39 mm
Basic packaging volume: 0.326 dm³

Transport Packaging

Transport packaging quantity: 14 pcs
EAN code for a transport packaging: 3838895452225
Transport packaging weight: 0.71 kg
Transport packaging volume: 5.2 dm³
Pallet quantity: 42,910 pcs
Customs tariff: 85364900

Width: 49 mm
Nominal current: 16 A
Function delay-on energization: ✓
Voltage type (operating voltage): AC
Function floating contact on energization: ✓
Voltage type for actuating: AC
Number of outputs, undelayed, normally open contact: 1
Depth: 13.3 mm
Type of electric connection: Soldering flag connection
Function delay on de-energization: ✓
Height: 49 mm
Function floating contact on de-energization: ✓
Rated control supply voltage AC 60 Hz(Min): 230 V
Rated control supply voltage AC 50 Hz(Min): 230 V
Time range(Min): 0.1 s
Rated control supply voltage AC 60 Hz(Max): 230 V
Time range(Max): 864,000
Rated control supply voltage AC 50 Hz(Max): 230 V
