002472001

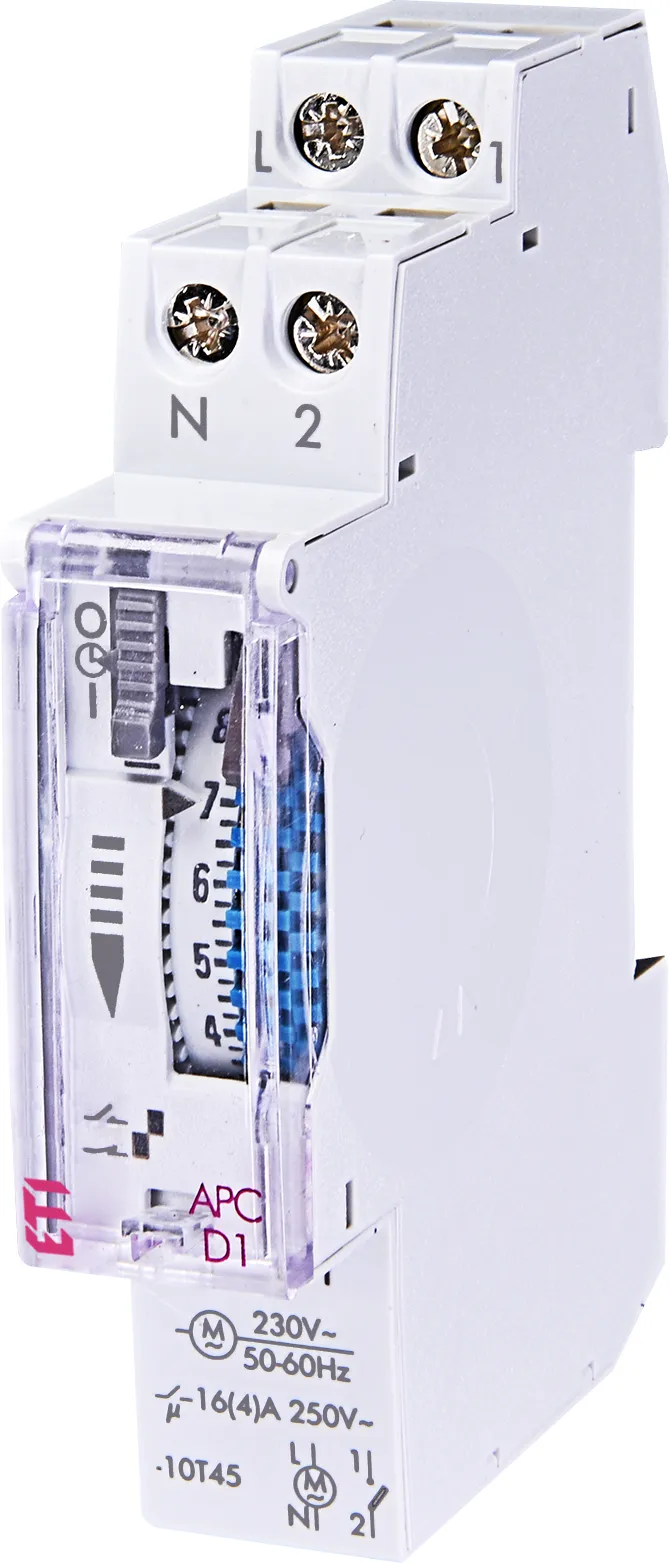

APC-D1 Time relay
- ETI Code:
- 002472001
- Time range:
- 15 min - 24 hours
- Function:
- Time relay
- Application:
- Sterowanie ogrzewaniem, wentylacją, chłodzeniem, oświetleniem i pompami
- Type of control:
- Time
- Supply voltage:
- 230 V
- Voltage type:
- AC
- Max. contact current:
- 16 A
- Rated current:
- 16 A
- Rated frequency:
- 50/60 Hz
- Max. load capacity at AC1:
- 4,000 VA
- Clamping cross-section:
- 1-4 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP20
- No. of NO contacts:
- 1
21 Logistics
Product
- Net weight of the product
- 0.095 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.12 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 5904722951464
- Basic packaging weight
- 0.086 kg
- Basic Packaging Dimensions Height
- 103 mm
- Basic Packaging Dimensions Width
- 22 mm
- Basic Packaging Dimensions Depth
- 73 mm
- Basic packaging volume
- 0.165 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895689744
- Transport packaging weight
- 0.98 kg
- Transport Packaging Dimensions Height
- 210 mm
- Transport Packaging Dimensions Width
- 150 mm
- Transport Packaging Dimensions Depth
- 160 mm
- Transport packaging volume
- 5.04 dm³
- Pallet quantity
- 1,500 pcs
- Customs tariff
- 85364900
19 ETIM
- Mains synchronous
- ✓
- Width
- 17.5 mm
- Suitable for manual operation
- ✓
- Number of channels
- 1
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Accuracy per day
- 1 s
- Voltage type (supply voltage)
- AC
- 24 h program
- ✓
- Nominal switching current at 250 V AC
- 16 A
- Depth
- 65 mm
- Shortest switching time channel 1
- 15 min
- Potential free switch contact
- ✓
- Height
- 90 mm
- Width in number of modular spacings
- 1
- Frequency supply voltage(Min)
- 50 Hz
- Supply voltage(Min)
- 230 V
- Frequency supply voltage(Max)
- 50 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
