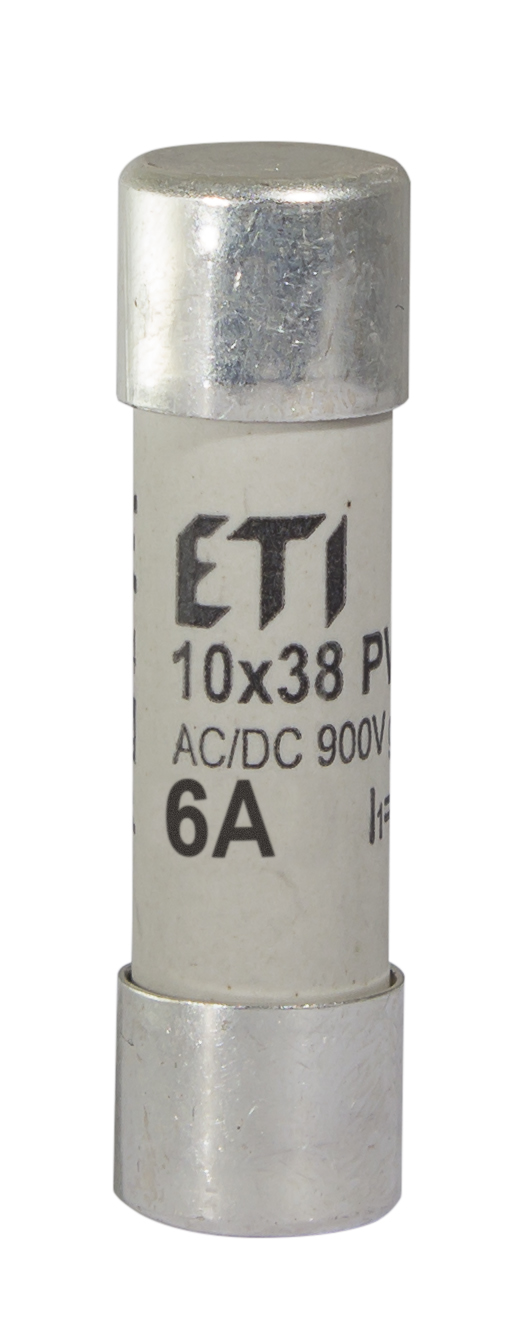

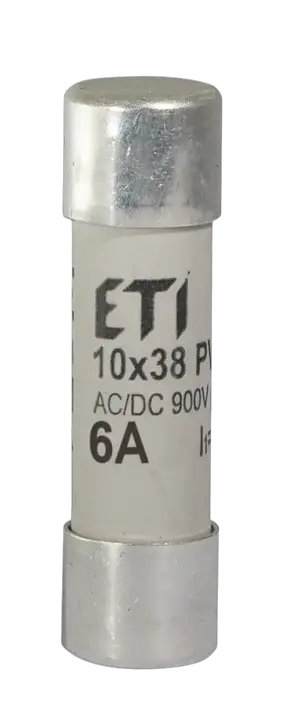

Fuse link CH10x38 gR 6A/900V AC/DC 002625029

Specifications

ETI Code:
002625029
Description:
CH10x38 gR 6A/900V AC/DC
Class name:
Fuse link
efuse:
1
Designed for:
Protection of PV installations
Product subgroup:
PV
Product group:
Special purpose fuses
L/R (ms):
2
Type:
CH
Size:
10x38
Rated current (A):
6
Rated AC voltage (V):
900
Rated DC voltage (V):
900
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Power dissipation (0,7x In) (W):
0,73
Power dissipation (W):
1,7
Prearcing joule integral (A2s):
14
Operating joule integral (A2s):
81
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838400052315
Net weight of the product
8.3  g
Customs tariff
85361010
logis_net_width
10  mm
logis_net_height
38  mm
logis_net_depth
10  mm

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895605263
Basic packaging weight
0.08  kg

Transport packaging

Transport packaging quantity
500
EAN code for a transport packaging
3838895605270
Transport packaging weight
4.1  kg
Pallet quantity
85000
Classification
EC002704
Class name
Cylindrical fuse
Max. rated operation voltage Ue AC
900
Construction size
CH10
Rated voltage DC
900
Application
For protection of semiconductor devices
Rated current
6
Size
10x38 mm
Rated voltage
Other
Utilization category
Other
Nominal current
6A
Breaking capacity
50kA
ETIM Classification – Version 7.0
