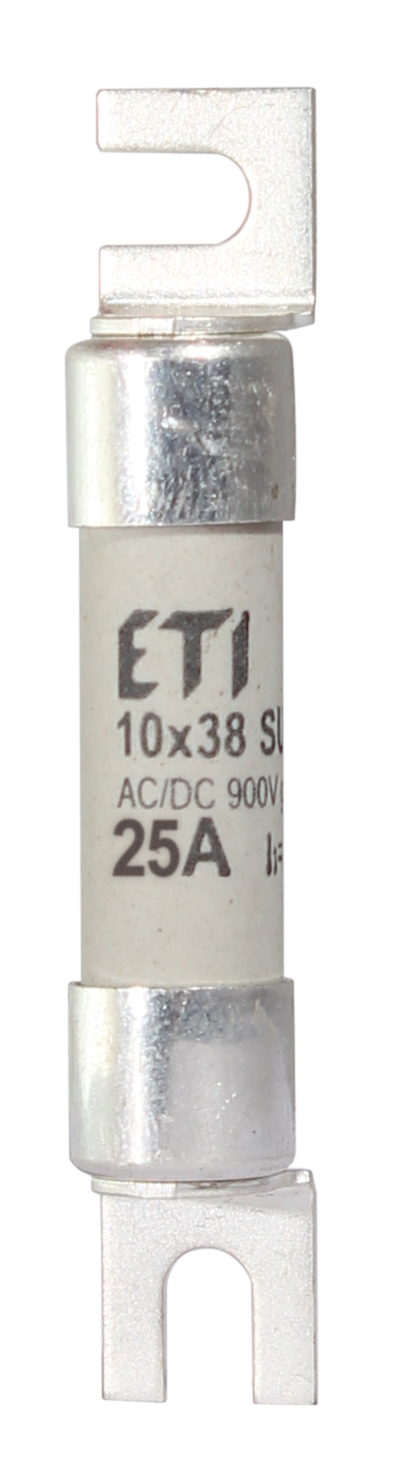

Fuse link CH10x38SU gR 25A/900V AC/DC 002625318

Specifications

ETI Code:
002625318
Description:
CH10x38SU gR 25A/900V AC/DC
Class name:
Fuse link
Type:
CH SU
Size:
CH10
Rated current (A):
25
Rated AC voltage (V):
900
Rated DC voltage (V):
900
Characteristics:
gR
Breaking capacity AC (kA):
50
Breaking capacity DC (kA):
8
Application:
For protection of semiconductor devices
Dimensions:
10x38
Power dissipation (0,7xIn) (W):
1,61
Power dissipation (W):
4
Prearcing joule integral (A2s):
246
Operating joule integral (A2s):
558
Standards:
IEC 60269-4

Documents

Product

EAN code for a single product
3838895612421
Net weight of the product
0.104 kg
Customs tariff
85361050

Basic packaging

Basic packaging quantity
10
EAN code for a basic packaging
3838895612421
Basic packaging weight
0.104 kg
Basic packaging volume
0.08

Transport packaging

Transport packaging quantity
380
EAN code for a transport packaging
3838895612438
Transport packaging weight
4.12 kg
Transport packaging volume
3.386
Pallet quantity
63840
Pallet volume
568.848
Classification
EC002704
Class name
Cylindrical fuse
Application
For protection of semiconductor devices
Breaking capacity
50kA
Construction size
CH10
Max. rated operation voltage Ue AC
900
Nominal current
25A
Nominal rated current
25
Rated voltage
Other
Rated voltage at DC
900
Size
10x38 mm
Utilization category
Other
ETIM Classification – Version 7.0
