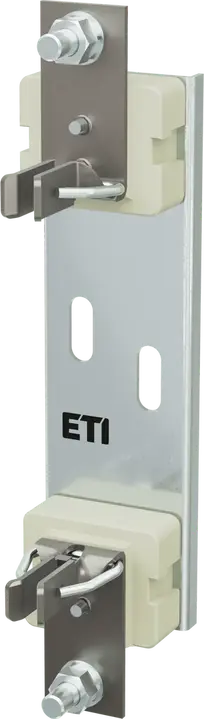

PK 2XL M10-M10 1500V 1p Fuse - base
- ETI Code:
- 004132019
- UL certificate:
- E356295
- IP rating:
- IP00
- Type description:
- PK
- Size:
- NH2XL
- Number of poles:
- 1
- Rated current:
- 400 A
- Rated AC voltage:
- 1500 V
- Rated DC voltage:
- 1500 V
- Breaking capacity AC:
- 200 kA
- Type of installation:
- Base plate mounting
- Overvoltage category:
- III
- Standards:
- IEC 60269, UL 4248-1, UL 4248-19
- Ambient temperature:
- -25/55 °C
- Conventional free air thermal current with fuse links:
- 400 A
- Conventional free air thermal current with solid links:
- 500 A
- Max. permissable power dissipation per fuse link:
- 45 W
- Rated operating mode:
- Uninterrupted
- Pollution degree:
- 3
- Rated frequency:
- 40/60 Hz
21 Logistics
Product
- Net weight of the product
- 921 g
- Net width
- 65 mm
- Net height
- 285 mm
- Net depth
- 89.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895654834
- Basic packaging weight
- 0.987 kg
- Basic Packaging Dimensions Height
- 0.083 m
- Basic Packaging Dimensions Width
- 0.097 m
- Basic Packaging Dimensions Depth
- 0.327 m
- Basic packaging volume
- 0.003 m³
Transport Packaging
- Transport packaging quantity
- 8 pcs
- EAN code for a transport packaging
- 3838895654841
- Transport packaging weight
- 8.448 kg
- Transport Packaging Dimensions Height
- 0.215 m
- Transport Packaging Dimensions Width
- 0.368 m
- Transport Packaging Dimensions Depth
- 0.368 m
- Transport packaging volume
- 0.029 m³
- Pallet quantity
- 144 pcs
- Customs tariff
- 85389099
5 ETIM
- Mounting method
- Screw-on
- Construction size
- Other
- Number of poles
- 1
- Connection type
- Screwed terminal
- Rated current
- 400 A
ETIM Classification – Version 9.0
1 Diagrams
1 Software & drivers
Software is provided as is without any guarantees or warranty. The author is under no obligation to provide support, service, corrections, or upgrades to the free software programs or drivers.
30 Tags
004132019Fuse - basePK 2XL M10-M10 1500V 1pGreen protectFuse basesPK XLPK XLPK XLSize 2InternationalFuse links NHFuse bases NH DCSize: NH2XLMax. permissable power dissipation per fuse link: 45 WPollution degree: 3Rated operating mode: UninterruptedBreaking capacity AC: 200 kAType description: PKConventional free air thermal current with solid links: 500 ANumber of poles: 1Ambient temperature: -25 °C/55 °CRated AC voltage: 1500 V/1500 VType of installation: Base plate mountingStandards: IEC 60269, UL 4248-1, UL 4248-19Conventional free air thermal current with fuse links: 400 ARated DC voltage: 1500 V/1500 VOvervoltage category: IIIRated current: 400 A/400 ARated frequency: 40 Hz/60 HzFuse - base
