004642211

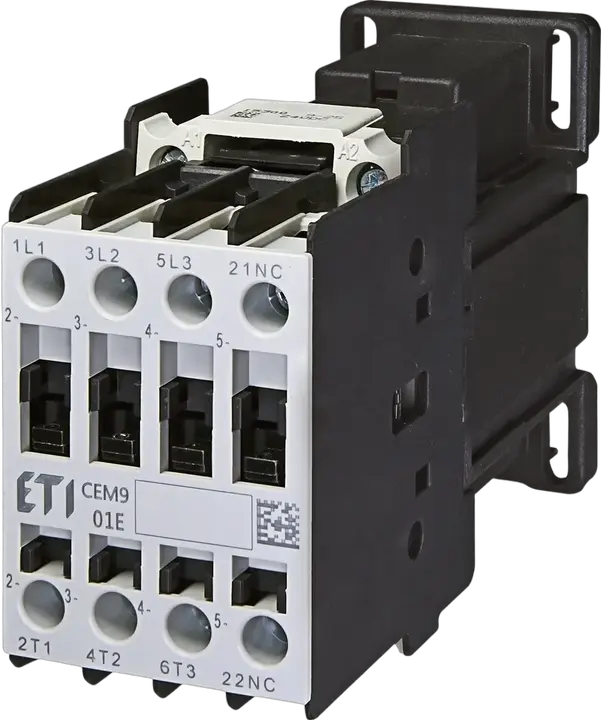

CEM9.01-220V-DC Motor contactor
- ETI Code:
- 004642211
- Rated operational power at AC1:
- 25 kW
- DC rated control supply voltage Uc:
- 220 V
- Rated operational current Ie at AC1:
- 25 A
- Rated operational current Ie at AC3, 400V:
- 9 A
- Rated operational voltage (AC):
- 690 V
- Rated control circuit voltage Uc (DC):
- 220 V
- Number of poles:
- 3
- No. of aux NC contacts:
- 1
- Function:
- Motor contactor
- Catalogue group:
- CEM Motor contactor
14 Logistics
Product
- Net weight of the product
- 0.295 kg
- Net width
- 45 mm
- Net height
- 81 mm
- Net depth
- 115.55 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 7890355109465
- Transport packaging weight
- 0.52 kg
- Transport Packaging Dimensions Height
- 122 mm
- Transport Packaging Dimensions Width
- 52 mm
- Transport Packaging Dimensions Depth
- 89 mm
- Transport packaging volume
- 0.565 dm³
- Pallet quantity
- 2,712 pcs
- Customs tariff
- 85364900
9 ETIM
- Rated operation current Ie at AC-3, 400 V
- 9 A
- Voltage type for actuating
- DC
- Type of electrical connection of main circuit
- Frame clamp
- Number of normally open contacts as main contact
- 3
- Rated operation power at AC-3, 400 V
- 4 kW
- Number of auxiliary contacts as normally closed contact
- 1
- Rated operation current Ie at AC-1, 400 V
- 25 A
- Rated control supply voltage DC(Min)
- 220 V
- Rated control supply voltage DC(Max)
- 220 V
ETIM Classification – Version 9.0
