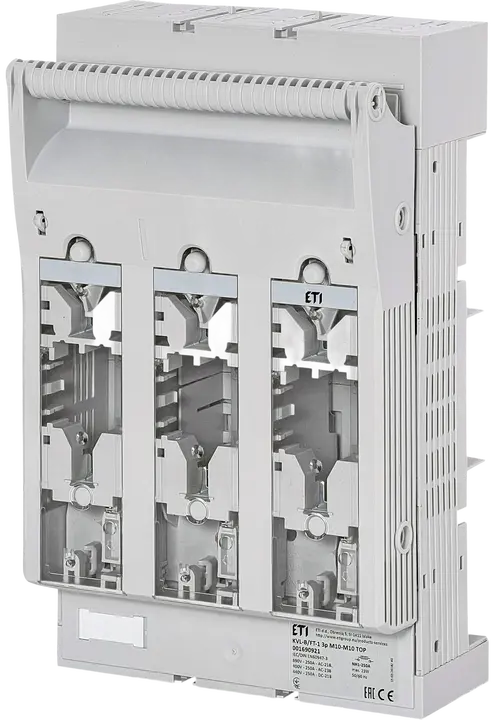

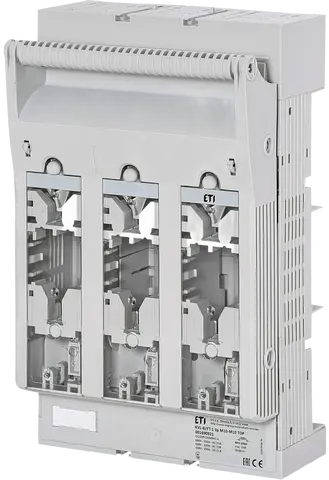

* KVL-B/FT-1 3p M10-M10 TOP Fuse switch disconnector
- ETI Code:
- 001690921
- Size:
- NH1
- Function:
- NH fuse-switch disconnector
- IP rating:
- IP20
4 Documents
11 Logistics
Product
- Net weight of the product
- 2.39 kg
- Net width
- 183.5 mm
- Net height
- 305.7 mm
- Net depth
- 140.3 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895823063
- Transport packaging weight
- 2.3 kg
- Transport packaging volume
- 9.3 dm³
- Pallet quantity
- 110 pcs
- Customs tariff
- 85363090
9 ETIM
- Version as safety switch
- Yes
- Max. rated operation voltage Ue AC
- 690 V
- Rated permanent current Iu
- 250 A
- Suitable for fuses
- NH1
- Type of control element
- Cover grip
- Type of electrical connection of main circuit
- Screw connection
- Degree of protection (IP), front side
- IP20
- Number of poles
- 3
- Version as main switch
- Yes
