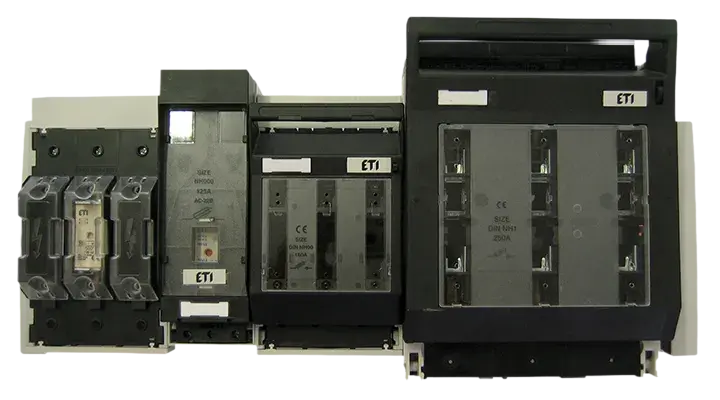

*PTV-B 1 3p M10 BOTTOM Fuse holder
- ETI Code:
- 001696037
- Function:
- NH fuse-base size 1, 3p, 5-10mm busbars, connection BOTTOM
2 Documents
12 Logistics
Product
- Net weight of the product
- 2.373 kg
- Stock unit of measure
- pcs
Basic Packaging
- EAN code for a basic packaging
- 3838400071644
- Basic packaging weight
- 2.373 kg
- Basic packaging volume
- 11.153 dm³
- Basic packaging quantity
- 1 pcs
Transport Packaging
- Transport packaging weight
- 2.373 kg
- Transport packaging volume
- 11.153 dm³
- Transport packaging quantity
- 1 pcs
- Customs tariff
- 85389099
- EAN code for a transport packaging
- 3838895738695
- Pallet quantity
- 150 pcs
2 ETIM
- Construction size
- Other
- Bus-mounting type
- Yes
