002470078
Obsolete

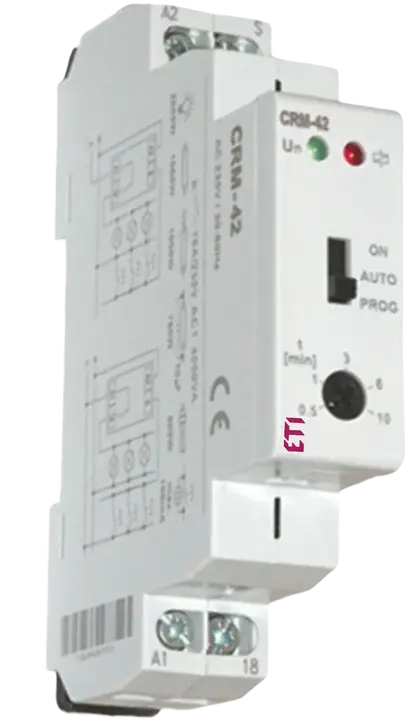

* CRM-42 230 Staircase switch
- ETI Code:
- 002470078
- Depth:
- 68 mm
- Catalogue Group:
- Twillight and staircase switches
- Catalogue Subgroup:
- Programmable staircase switch
- Type of Installation:
- TH 35
- Type description:
- Programmable stairrcase switch CRM-42
- Function:
- Time relay
- Supply Voltage:
- 230 V
- Number of contacts:
- 1
- Rated current:
- 16 A
- Maximum load capacity at AC1:
- 4,000 VA
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
- No. of CO contacts:
- 1
7 Documents
15 Logistics
Product
- Net weight of the product
- 0.07 kg
- Net width
- 17.5 mm
- Net height
- 91.3 mm
- Net depth
- 64.26 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895429272
- Basic packaging weight
- 0.065 kg
- Basic packaging volume
- 0.11 dm³
Transport Packaging
- Transport packaging quantity
- 10 pcs
- EAN code for a transport packaging
- 3838895429289
- Transport packaging weight
- 0.7 kg
- Transport packaging volume
- 1.6 dm³
- Pallet quantity
- 11,250 pcs
- Customs tariff
- 85364900
15 ETIM
- Built-in depth
- 68 mm
- Mounting method
- DIN rail
- Voltage type (supply voltage)
- AC
- Rated switch current
- 16 A
- Type of control voltage 1
- AC
- Function
- Electronic
- Width in number of modular spacings
- 1
- Release-delay(Min)
- 0.08 min
- Supply voltage(Min)
- 230 V
- Control voltage 1(Min)
- 230 V
- Frequency control voltage 1(Min)
- 50 Hz
- Control voltage 1(Max)
- 230 V
- Release-delay(Max)
- 10
- Frequency control voltage 1(Max)
- 60 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
