001100340

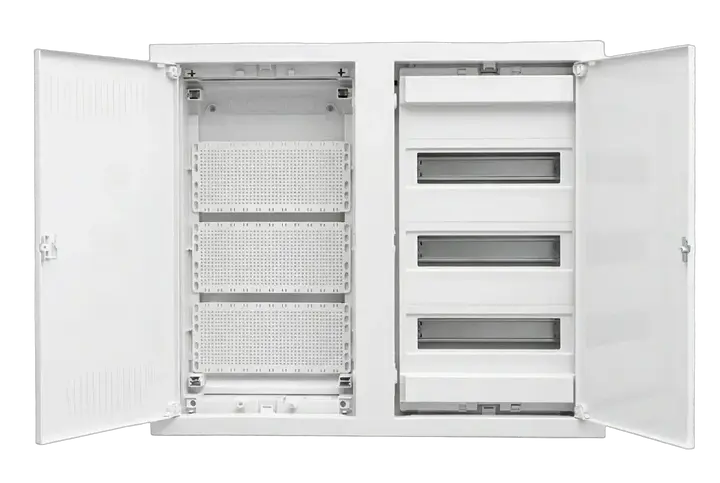

ECG42HCOMBO3/3-H-I Distribution box
- ETI Code:
- 001100340
- Rated AC voltage:
- 400 V
- Rated DC voltage:
- 400 V
- Catalogue Group:
- ECG flush mounted Multimedia distribution boxes IP30
- Type of Installation:
- Flush-mounted/hollow wall
- Rated current:
- 63 A
- Protection Class:
- II
- IP rating:
- IP30
- No. of modules (total/per row):
- 42/14
- Frame size (Nr. of rows):
- 3
- Door (material, color):
- metal-perforated, white
- Number of PE/N terminals (connections):
- 15
- Glow wire test (°C):
- 850 °C
14 Logistics
Product
- Net weight of the product
- 7.277 kg
- Net width
- 769.7 mm
- Net height
- 594.3 mm
- Net depth
- 98.55 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838895896395
- Transport packaging weight
- 7.87 kg
- Transport Packaging Dimensions Height
- 692 mm
- Transport Packaging Dimensions Width
- 592 mm
- Transport Packaging Dimensions Depth
- 96 mm
- Transport packaging volume
- 39.328 dm³
- Pallet quantity
- 22 pcs
- Customs tariff
- 85381000
1 ETIM
- Width in number of modular spacings
- 12
ETIM Classification – Version 9.0
