002921141

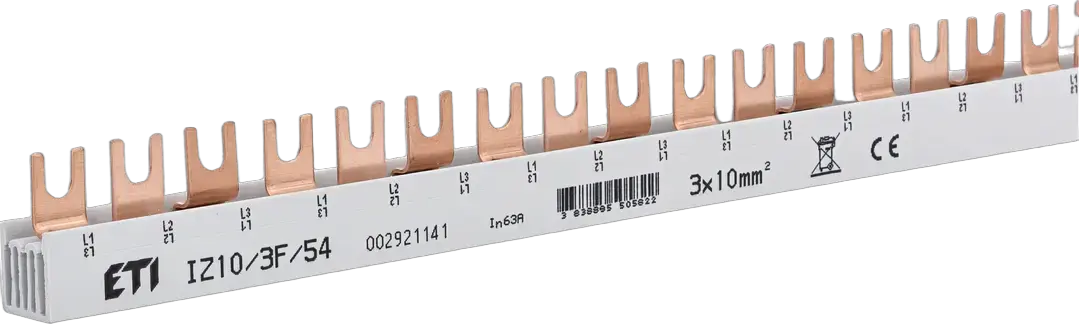

IZ10/3F/54 Insulated busbar
- ETI Code:
- 002921141
- To use with:
- ETIMAT 6, ETITEC, SV, VLD01, ETIMAT P10
- Catalogue Group:
- IZ Section rails
- Type description:
- Fork Type
- Number of poles:
- 3
- Function:
- Section rails
- Busbar type:
- FORK
- Rated current:
- 63 A
- Rated cross section:
- 10 mm²
- Lenght in modules:
- 1x54
- No. Of Phases:
- 3
- Voltage type:
- AC/DC
- Rated AC voltage:
- 500 V
- Rated DC voltage:
- 500 V
- Type accessories:
- Section rails
5 Documents
15 Logistics
Product
- Net weight of the product
- 0.56 kg
- Net width
- 963.5 mm
- Net height
- 30.7 mm
- Net depth
- 16.1 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895505822
- Basic packaging weight
- 0.56 kg
- Basic packaging volume
- 0.45 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838895505839
- Transport packaging weight
- 11.2 kg
- Transport packaging volume
- 9 dm³
- Pallet quantity
- 1,420 pcs
- Customs tariff
- 85389099
13 ETIM
- Can be cut to size
- Yes
- Cross section
- 10 mm²
- Number of phases
- 3
- Rated permanent current Iu
- 63 A
- Suitable for number of devices
- 54
- Module width
- 17.8 mm
- Number of poles
- 3
- Length
- 1,000 mm
- Max. rated operation voltage Ue
- 690 V
- Insulated
- Yes
- Colour
- Grey
- Type of electric connection
- Fork
- Width in number of modular spacings
- 54
ETIM Classification – Version 9.0
