004181139

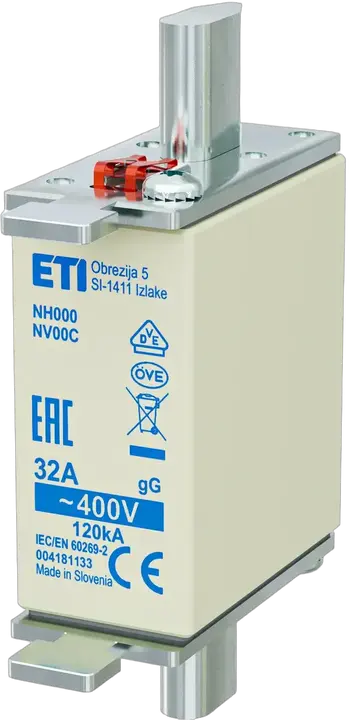

NH000 gG 32A/400V korr. Fuse link
- ETI Code:
- 004181139
- Fuse type:
- NH
- Size:
- NH000
- Rated current:
- 32 A
- Time-Current Characteristic:
- gG
- Indicator:
- Top fuse status indicator
- Rated AC voltage:
- 400 V
- Breaking capacity AC:
- 120 kA
- Power dissipation:
- 3 W
- Operating joule integral (A2s):
- 6,838
- Prearcing joule integral (A2s):
- 1,760
- Standards:
- IEC 60269-1, IEC 60269-2
- Application:
- For cable protection
22 Logistics
Product
- EAN code for a single product
- 3838895985952
- Net weight of the product
- 120 g
- Net width
- 21 mm
- Net height
- 78.6 mm
- Net depth
- 51.9 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 3 pcs
- EAN code for a basic packaging
- 3838895851325
- Basic packaging weight
- 0.373 kg
- Basic Packaging Dimensions Height
- 0.056 m
- Basic Packaging Dimensions Width
- 0.068 m
- Basic Packaging Dimensions Depth
- 0.084 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 120 pcs
- EAN code for a transport packaging
- 3838895851332
- Transport packaging weight
- 15.286 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 6,240 pcs
- Customs tariff
- 85361050
