004110348

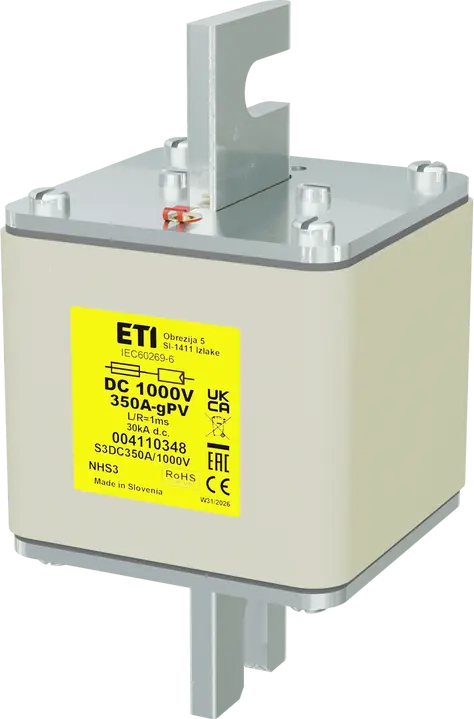

NHS3 gPV 350A/1000V DC Fuse link

ETI Code:: 004110348
Fuse type:: NH-S
Size:: NH3
Rated current:: 350 A
Time-Current Characteristic:: gPV
Indicator:: Top fuse status indicator
Rated DC voltage:: 1000 V
Breaking capacity DC:: 30 kA
L/R:: 1 ms
Power dissipation (0,7xIn):: 25 W
Power dissipation:: 55 W
Prearcing joule integral (A2s):: 45,000
Operating joule integral (A2s):: 90,000
Standards:: IEC 60269-6
Application:: Fuse link for DC application

Product

EAN code for a single product: 3838895801023
Net weight of the product: 1,250 g
Net width: 73 mm
Net height: 139 mm
Net depth: 73 mm
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 3 pcs
EAN code for a basic packaging: 3838895800965
Basic packaging weight: 3.9 kg
Basic Packaging Dimensions Height: 0.103 m
Basic Packaging Dimensions Width: 0.244 m
Basic Packaging Dimensions Depth: 0.164 m
Basic packaging volume: 0.004 m³

Transport Packaging

Transport packaging quantity: 15 pcs
EAN code for a transport packaging: 3838895800972
Transport packaging weight: 20.05 kg
Transport Packaging Dimensions Height: 0.23 m
Transport Packaging Dimensions Width: 0.38 m
Transport Packaging Dimensions Depth: 0.38 m
Transport packaging volume: 0.033 m³
Pallet quantity: 360 pcs
Customs tariff: 85361090

Voltage type: DC
Fuse construction type according to IEC 60269: NH3
Power loss at rated current: 55 W
Rated switching capacity DC: 30 kA
Type of fuse status indicator: Top fuse status indicator
Rated current: 350 A
Rated voltage DC: 1,000
Utilization category: gPV (photovoltaic protection)

ETIM Classification – Version 9.0
