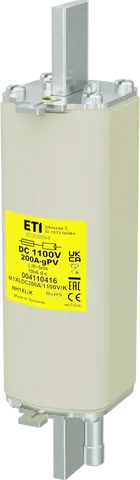

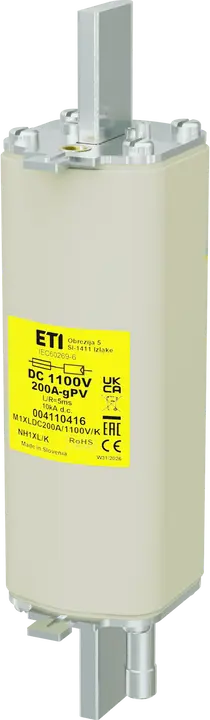

NH1XL/K gPV 200A/1100V DC Fuse link
- ETI Code:
- 004110416
- Fuse type:
- NH-K
- Size:
- NH1XL
- Rated current:
- 200 A
- Time-Current Characteristic:
- gPV
- Indicator:
- Striker pin status indicator
- Rated DC voltage:
- 1100 V
- Breaking capacity DC:
- 10 kA
- L/R:
- 5 ms
- Power dissipation (0,7xIn):
- 13.9 W
- Power dissipation:
- 32.6 W
- Prearcing joule integral (A2s):
- 42,600
- Operating joule integral (A2s):
- 83,400
- Standards:
- IEC 60269-6
- Application:
- Fuse link for DC application
21 Logistics
Product
- Net weight of the product
- 750 g
- Net width
- 46 mm
- Net height
- 198 mm
- Net depth
- 63 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895503835
- Basic packaging weight
- 0.75 kg
- Basic Packaging Dimensions Height
- 0.055 m
- Basic Packaging Dimensions Width
- 0.205 m
- Basic Packaging Dimensions Depth
- 0.076 m
- Basic packaging volume
- 0.001 m³
Transport Packaging
- Transport packaging quantity
- 16 pcs
- EAN code for a transport packaging
- 3838895534518
- Transport packaging weight
- 12.35 kg
- Transport Packaging Dimensions Height
- 0.255 m
- Transport Packaging Dimensions Width
- 0.295 m
- Transport Packaging Dimensions Depth
- 0.235 m
- Transport packaging volume
- 0.018 m³
- Pallet quantity
- 832 pcs
- Customs tariff
- 85351000
8 ETIM
- Voltage type
- DC
- Fuse construction type according to IEC 60269
- 1XL
- Power loss at rated current
- 32.6 W
- Rated switching capacity DC
- 10 kA
- Type of fuse status indicator
- Other
- Rated current
- 200 A
- Rated voltage DC
- 1,100
- Utilization category
- gPV (photovoltaic protection)
