002174821

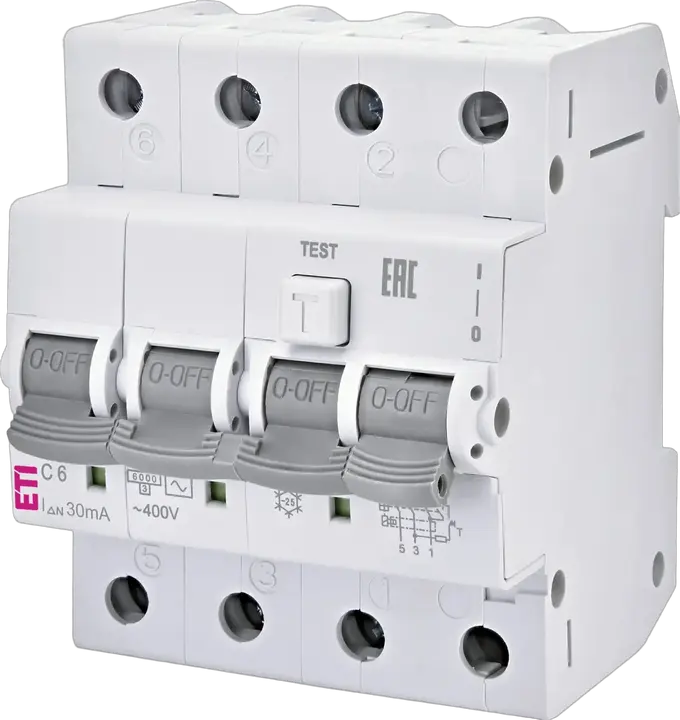

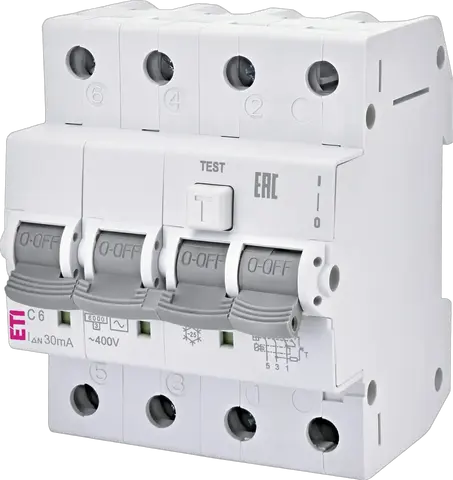

KZS-4M 3p AC C6/0.03 RCBO
- ETI Code:
- 002174821
- Function:
- RCBO
- Rated AC voltage:
- 415 V
- Catalogue Group:
- KZS-4M 3p Residual current circuit breakers with
- Fault type signalisation:
- No
- Application:
- IEC/EN 61009
- Rated conditional short-circuit current Inc:
- 10 kA
- Rated residual operating current IDn:
- 0.03 A
- Rated current:
- 6 A
- Residual current type:
- AC
- Rated residual current:
- 0.03 A
- Tripping characteristic:
- C
- Number of poles:
- 2
- Short circuit capacity:
- 10 kA
- Rated Frequency:
- 50/60 Hz
- Rated cross section:
- 1-25 mm²
- Standards:
- IEC/EN 61009
21 Logistics
Product
- Net weight of the product
- 482 g
- Net width
- 70.4 mm
- Net height
- 89.8 mm
- Net depth
- 72.78 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895575092
- Basic packaging weight
- 0.507 kg
- Basic Packaging Dimensions Height
- 0.075 m
- Basic Packaging Dimensions Width
- 0.09 m
- Basic Packaging Dimensions Depth
- 0.074 m
- Basic packaging volume
- 0 m³
Transport Packaging
- Transport packaging quantity
- 27 pcs
- EAN code for a transport packaging
- 3838895575108
- Transport packaging weight
- 14.039 kg
- Transport Packaging Dimensions Height
- 0.25 m
- Transport Packaging Dimensions Width
- 0.235 m
- Transport Packaging Dimensions Depth
- 0.295 m
- Transport packaging volume
- 0.017 m³
- Pallet quantity
- 1,404 pcs
- Customs tariff
- 85362010
9 ETIM
- Leakage current type
- Other
- Release characteristic
- C
- Rated fault current
- 0.03 A
- Frequency
- Other
- Rated short-circuit breaking capacity according to EN 61009
- 10 kA
- Rated voltage
- 415 V
- Rated current
- 6 A
- Connectable conductor cross section multi-wired(Min)
- 1 mm²
- Connectable conductor cross section multi-wired(Max)
- 25 mm²
ETIM Classification – Version 9.0
