002175293
Obsolete

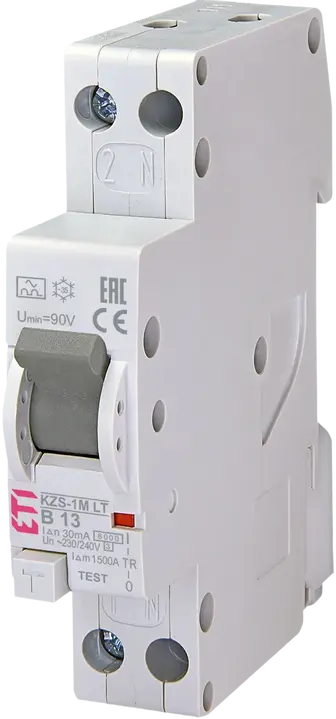

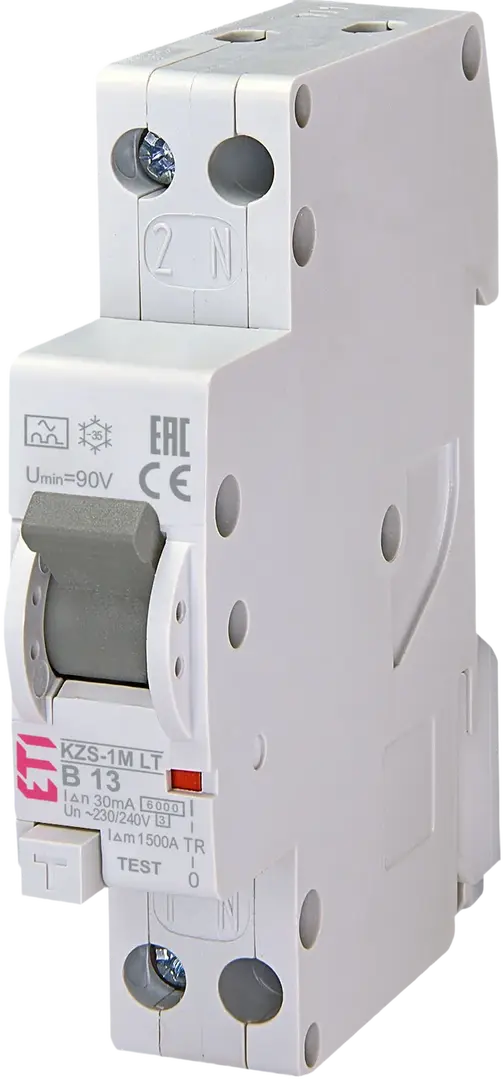

*KZS-1M-LT 1p+N A B13/0.03 6kA RCBO
- ETI Code:
- 002175293
- Function:
- RCBO
- Rated AC voltage:
- 230 V
- Catalogue Group:
- KZS-1M Residual current circuit breakers with ove
- Fault type signalisation:
- No
- Application:
- IEC 61009
- Special Environment:
- - 35 degrees C
- Connection type:
- Supply from the bottom
- Rated conditional short-circuit current Inc:
- 6 kA
- Rated residual operating current IDn:
- 0.03 A
- Rated current:
- 13 A
- Residual current type:
- A
- Rated residual current:
- 0.03 A
- Tripping characteristic:
- B
- Number of poles:
- 1+N
- Short circuit capacity:
- 6 kA
- Rated cross section:
- 1-10 mm²
- Standards:
- IEC 61009
21 Logistics
Product
- Net weight of the product
- 0.115 kg
- Net width
- 17.9 mm
- Net height
- 88.2 mm
- Net depth
- 73.97 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895819608
- Basic packaging weight
- 0.123 kg
- Basic Packaging Dimensions Height
- 75 mm
- Basic Packaging Dimensions Width
- 91 mm
- Basic Packaging Dimensions Depth
- 20 mm
- Basic packaging volume
- 0.136 dm³
Transport Packaging
- Intermediate packaging quantity
- 12 pcs
- EAN code for a intermediate packaging
- 3838895819615
- Intermediate packaging weight
- 1.546 kg
- Transport packaging quantity
- 72 pcs
- EAN code for a transport packaging
- 3838895819622
- Transport packaging weight
- 9.626 kg
- Transport packaging volume
- 17.4 dm³
- Pallet quantity
- 3,744 pcs
- Customs tariff
- 85362010
