002423321

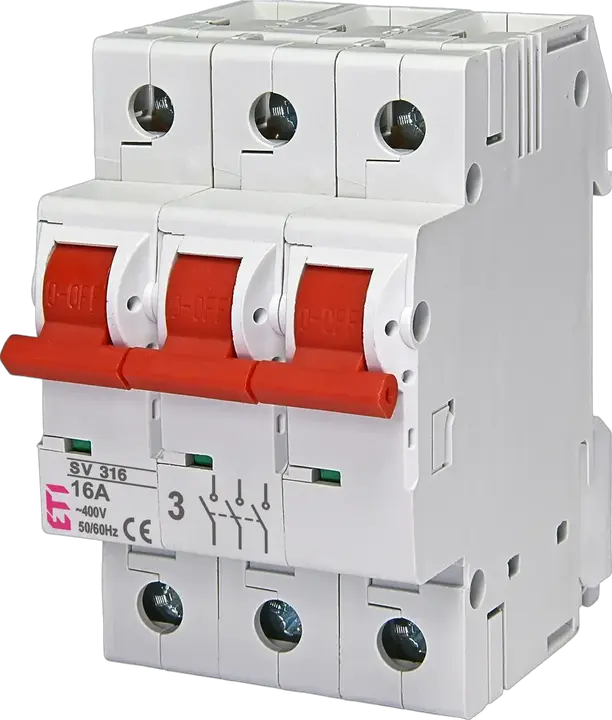

SV 316 3p 16A Build-in switch
- ETI Code:
- 002423321
- Number of poles:
- 3
- Function:
- Build-in switch
- Rated current:
- 16 A
16 Logistics
Product
- EAN code for a single product
- 3838895321378
- Net weight of the product
- 0.34 kg
- Net width
- 54 mm
- Net height
- 87.2 mm
- Net depth
- 72.92 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 4 pcs
- EAN code for a basic packaging
- 3838895321354
- Basic packaging weight
- 1.1 kg
- Basic packaging volume
- 1.47 dm³
Transport Packaging
- Transport packaging quantity
- 36 pcs
- EAN code for a transport packaging
- 3838895321361
- Transport packaging weight
- 10.3 kg
- Transport packaging volume
- 17.4 dm³
- Pallet quantity
- 1,872 pcs
- Customs tariff
- 85365080
20 ETIM
- Version as emergency stop installation
- Yes
- Built-in depth
- 68 mm
- Version as maintenance-/service switch
- Yes
- Version as safety switch
- Yes
- Voltage type
- AC
- Max. rated operation voltage Ue AC
- 400 V
- Rated permanent current Iu
- 16 A
- Type of control element
- Rocker lever
- Conditioned rated short-circuit current Iq
- 2 kA
- Type of electrical connection of main circuit
- Frame clamp
- Degree of protection (IP), front side
- IP20
- Voltage release optional
- Yes
- Number of poles
- 3
- Device construction
- Built-in device fixed built-in technique
- Number of contacts as normally open contact
- 3
- Rated voltage
- 400 V
- Rated current
- 16 A
- Switching function
- Off switch
- Width in number of modular spacings
- 3
- Version as main switch
- Yes
ETIM Classification – Version 9.0
