002440857

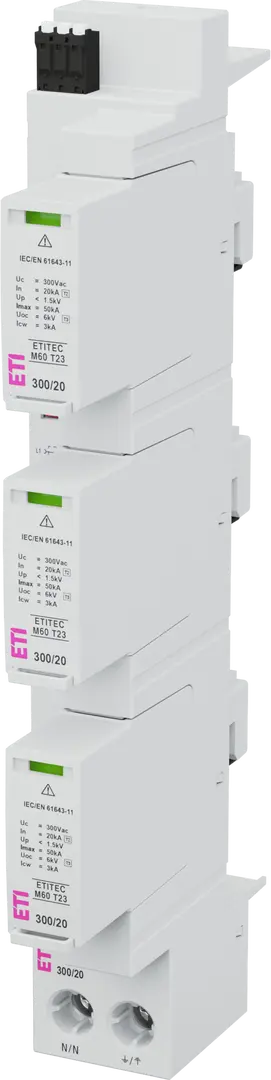

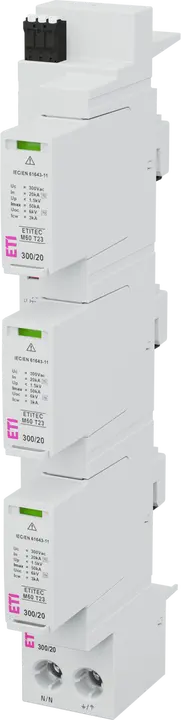

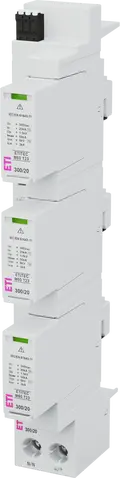

ETITEC M60 T23 300/20 3+1 RC Surge arrester
- ETI Code:
- 002440857
- Function:
- SPD
- Surge arrester type:
- T2, T3
- Continous operating voltage AC Uc:
- 300 V
- Nominal discharge current (8/20 μs) In:
- 20 kA
- Current type:
- AC
- Rated AC voltage:
- 230 V
- Up - Voltage protection level:
- 1.5 kV
- Remote signalisation:
- ✓
- Leakage current:
- ✓
- Network system:
- TT/TN-S
- Number of modules:
- 4
- Installation:
- Industrial building protection
- Built-in depth:
- 81 mm
- IP rating:
- IP20
- Applied technology:
- MOV
- Catalogue group:
- ETITEC M60
4 Documents
21 Logistics
Product
- Net weight of the product
- 0.477 kg
- Net width
- 36 mm
- Net height
- 244.5 mm
- Net depth
- 109.3 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838400113849
- Basic packaging weight
- 0.571 kg
- Basic Packaging Dimensions Height
- 133 mm
- Basic Packaging Dimensions Width
- 44 mm
- Basic Packaging Dimensions Depth
- 262 mm
- Basic packaging volume
- 1.533 dm³
Transport Packaging
- Transport packaging quantity
- 20 pcs
- EAN code for a transport packaging
- 3838400113856
- Transport packaging weight
- 12.041 kg
- Transport Packaging Dimensions Height
- 395 mm
- Transport Packaging Dimensions Width
- 363 mm
- Transport Packaging Dimensions Depth
- 253 mm
- Transport packaging volume
- 36.276 dm³
- Pallet quantity
- 540 pcs
- Customs tariff
- 85363090
19 ETIM
- Max. conductor cross section flexible (fine-strand)
- 25 mm²
- Max. discharge surge current (8/20)
- 50 kA
- Number of conductors (without earthing)
- 4
- Voltage protection level L-N
- 1.5 kV
- Nominal voltage AC
- 230 V
- Max. conductor cross section solid (solid, stranded)
- 35 mm²
- Degree of protection (IP)
- IP20
- Mounting method
- Busbar
- Construction size
- Other
- Short-circuit breaking capacity (Isccr)
- 25 kA
- System configuration TN-S
- ✓
- Voltage protection level
- 1.5 kV
- System configuration TT
- ✓
- Signalling at the device
- Optical
- Category type 2
- ✓
- Voltage protection level N-PE
- 1.5 kV
- Max. continuous voltage AC
- 300 V
- With remote signalling contact
- ✓
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
