002440674

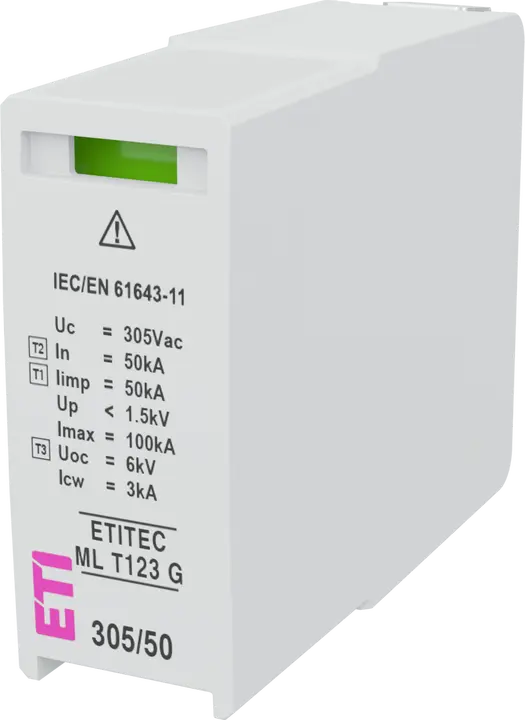

MOD.ETITEC ML T123 305/50 G Surge arrester
- ETI Code:
- 002440674
- Rated AC voltage:
- 230 V
- Network system:
- TN/TT
- Catalogue Group:
- ETITEC ML
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Leakage Current:
- Yes
- Applied Technology:
- MOV
- Surge arrester type:
- T1, T2, T3
- Uc Continous Operating Voltage AC:
- 305 V
- Function:
- SPD Module
- To use with:
- ETITEC ML T123
- Current type:
- AC
- Iimp(10/350) Impulse Current:
- 50 kA
- Nominal Discharge Current (8/20 μs) In:
- 50 kA
- Max. Discharge current Imax, 8/20:
- 100 kA
21 Logistics
Product
- Net weight of the product
- 0.107 kg
- Net width
- 18 mm
- Net height
- 45 mm
- Net depth
- 64.14 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895927303
- Basic packaging weight
- 0.14 kg
- Basic Packaging Dimensions Height
- 99 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0.119 dm³
Transport Packaging
- Transport packaging quantity
- 28 pcs
- EAN code for a transport packaging
- 3838895927310
- Transport packaging weight
- 4.001 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2.937 dm³
- Pallet quantity
- 4,872 pcs
- Customs tariff
- 85363090
15 ETIM
- System configuration TN-C
- Yes
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Lightning impulse current (10/350 µs)
- 50 kA
- Specific energy (W/R)
- 39 kJ/Ohm
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- Number of poles
- 1
- System configuration TT
- Yes
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 305 V
ETIM Classification – Version 9.0
