002440712

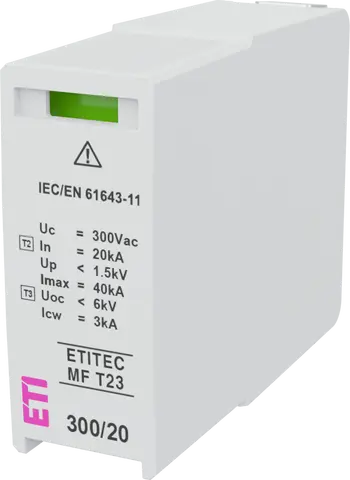

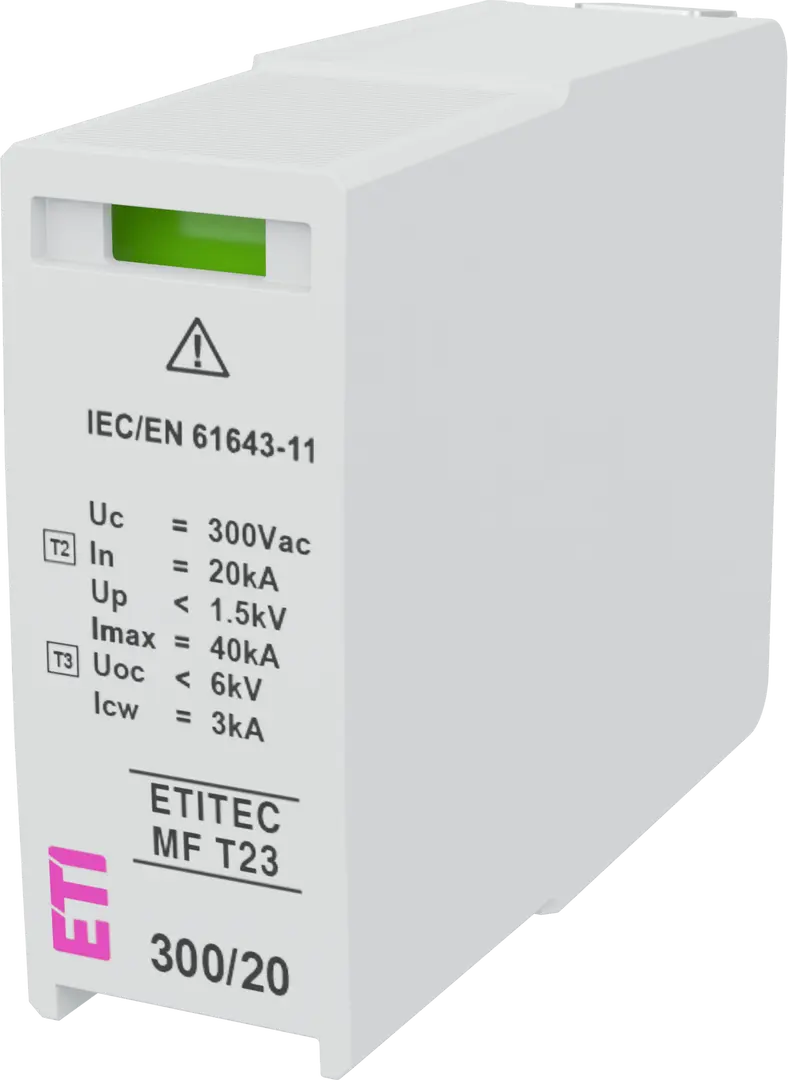

MOD. MF T23 300/20 Surge arrester
- ETI Code:
- 002440712
- Rated AC voltage:
- 230 V
- Network system:
- TN/TT
- Catalogue Group:
- ETITEC MF
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Leakage Current:
- Yes
- Applied Technology:
- MOV
- Surge arrester type:
- T2, T3
- Uc Continous Operating Voltage AC:
- 300 V
- Function:
- SPD Module
- To use with:
- ETITEC MF T23
- Current type:
- AC
- Nominal Discharge Current (8/20 μs) In:
- 20 kA
1 Documents
18 Logistics
Product
- Net weight of the product
- 0.069 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895965817
- Basic packaging weight
- 0.076 kg
- Basic Packaging Dimensions Height
- 72 mm
- Basic Packaging Dimensions Width
- 24 mm
- Basic Packaging Dimensions Depth
- 50 mm
- Basic packaging volume
- 0.086 dm³
Transport Packaging
- Transport packaging quantity
- 24 pcs
- EAN code for a transport packaging
- 3838895965824
- Transport packaging weight
- 1.905 kg
- Transport Packaging Dimensions Height
- 83 mm
- Transport Packaging Dimensions Width
- 305 mm
- Transport Packaging Dimensions Depth
- 116 mm
- Transport packaging volume
- 2.937 dm³
- Pallet quantity
- 8,160 pcs
- Customs tariff
- 85363090
16 ETIM
- System configuration TN-C
- Yes
- Max. discharge surge current (8/20)
- 40 kA
- Nominal voltage AC
- 230 V
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 1 modular spacing
- Short-circuit breaking capacity (Isccr)
- 50 kA
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- System configuration TT
- Yes
- Integrated backup fuse
- Yes
- Signalling at the device
- Optical
- Category type 2
- Yes
- Max. continuous voltage AC
- 300 V
- Nominal discharge surge current (8/20)
- 20 kA
ETIM Classification – Version 9.0
