002440725
MOD. GSMF T123 275/25 Surge arrester
- ETI Code:
- 002440725
- Rated AC voltage:
- 230 V
- Network system:
- TT/TN-S
- Catalogue Group:
- ETITEC GSMF
- Installation:
- Home and residental building protection
- IP rating:
- IP20
- Leakage Current:
- No
- Applied Technology:
- GDT
- Built-in depth:
- 73.5 mm
- Surge arrester type:
- T1, T2, T3
- Uc Continous Operating Voltage AC:
- 275 V
- Function:
- SPD
- To use with:

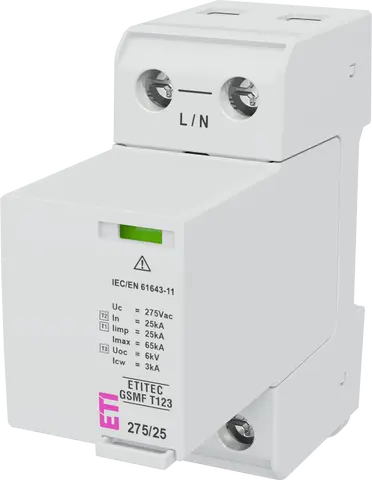

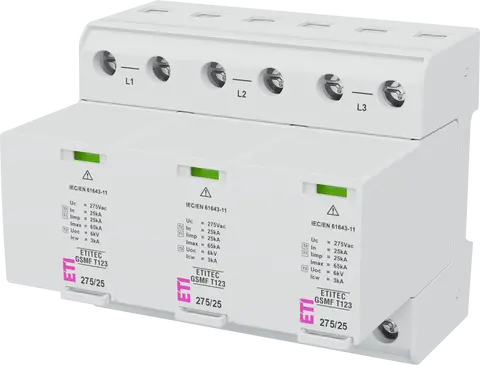

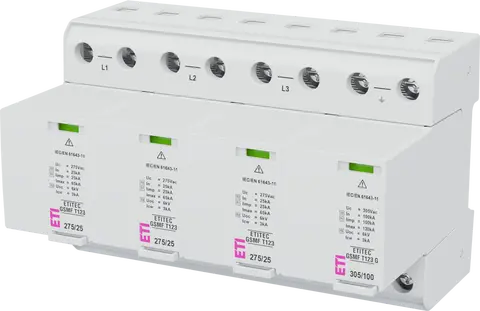

- ETITEC GSMF T123
- Current type:
- AC
- Iimp(10/350) Impulse Current:
- 25 kA
- Nominal Discharge Current (8/20 μs) In:
- 25 kA
1 Documents
18 Logistics
Product
- Net weight of the product
- 0.194 kg
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895966074
- Basic packaging weight
- 0.205 kg
- Basic Packaging Dimensions Height
- 91 mm
- Basic Packaging Dimensions Width
- 41 mm
- Basic Packaging Dimensions Depth
- 48 mm
- Basic packaging volume
- 0.179 dm³
Transport Packaging
- Transport packaging quantity
- 14 pcs
- EAN code for a transport packaging
- 3838895966081
- Transport packaging weight
- 2.951 kg
- Transport Packaging Dimensions Height
- 109 mm
- Transport Packaging Dimensions Width
- 352 mm
- Transport Packaging Dimensions Depth
- 115 mm
- Transport packaging volume
- 4.412 dm³
- Pallet quantity
- 3,164 pcs
- Customs tariff
- 85363090
17 ETIM
- System configuration TN-C
- Yes
- Nominal voltage AC
- 230 V
- Test class
- Type 1 + 2
- Degree of protection (IP)
- IP20
- Mounting method
- On basic element
- Construction size
- 2 modular spacing
- Lightning impulse current (10/350 µs)
- 25 kA
- Specific energy (W/R)
- 156.2 kJ/Ohm
- System configuration TN-S
- Yes
- Voltage protection level
- 1.5 kV
- System configuration TN
- Yes
- Number of poles
- 1
- System configuration TT
- Yes
- Integrated backup fuse
- Yes
- Signalling at the device
- Optical
- Max. continuous voltage AC
- 275 V
- Follow current extinguishing capability
- 75 kA
ETIM Classification – Version 9.0
