002921083

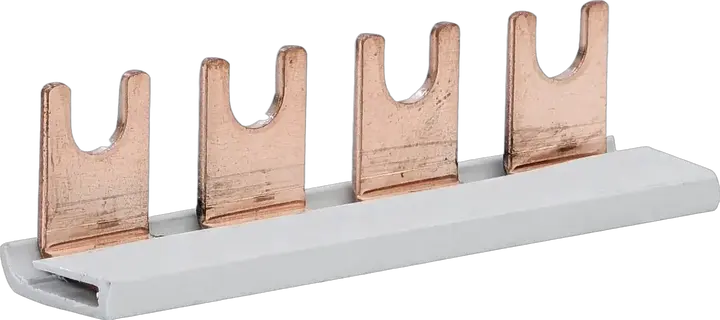

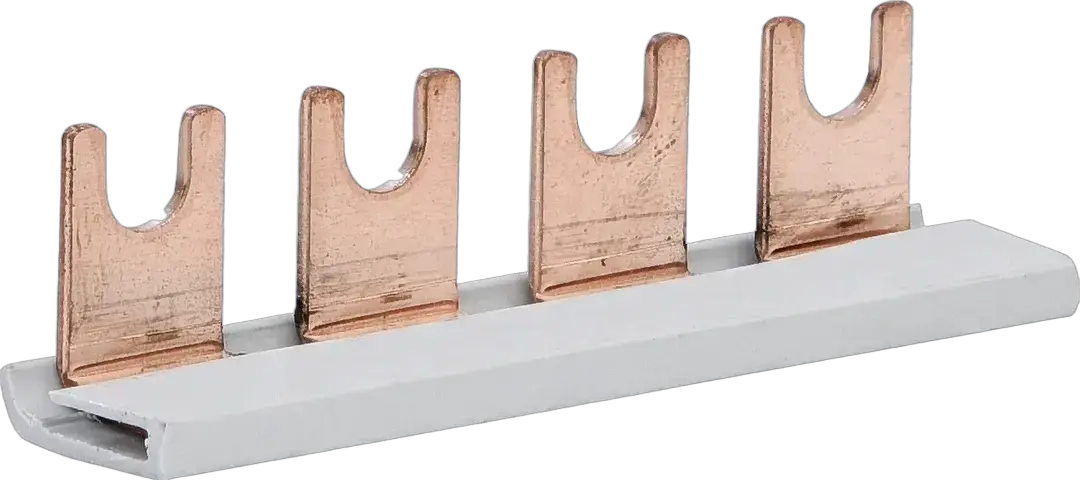

IZ16/1F/4/ETITEC Insulated busbar
- ETI Code:
- 002921083
- Catalogue Group:
- IZ Section rails
- Uc Continous Operating Voltage AC:
- 500 V
- Function:
- Connection terminals
- To use with:
- ETIMAT 6, ETITEC B T12, C T2, D T3, SV, VLD01, ETIMAT P10
- Current type:
- AC
5 Documents
16 Logistics
Product
- EAN code for a single product
- 5907625307345
- Net weight of the product
- 0.27 kg
- Net width
- 65.4 mm
- Net height
- 18.6 mm
- Net depth
- 17.12 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 50 pcs
- EAN code for a basic packaging
- 5907625307475
- Basic packaging weight
- 1.1 kg
- Basic packaging volume
- 1.1 dm³
Transport Packaging
- Transport packaging quantity
- 600 pcs
- EAN code for a transport packaging
- 5907625307543
- Transport packaging weight
- 13.2 kg
- Transport packaging volume
- 14 dm³
- Pallet quantity
- 36,600 pcs
- Customs tariff
- 85389099
12 ETIM
- Rated surge voltage
- 4 kV
- Cross section
- 16 mm²
- Suitable for devices with N-conductor
- Yes
- Number of phases
- 1
- Rated permanent current Iu
- 100 A
- Suitable for number of devices
- 4
- Module width
- 6.2 mm
- Length
- 73 mm
- Max. rated operation voltage Ue
- 500 V
- Insulated
- Yes
- Type of electric connection
- Fork
- Width in number of modular spacings
- 4
ETIM Classification – Version 9.0
