PV surge arrestors, also known as surge protective devices (SPDs), are critical for safeguarding photovoltaic (PV) systems from overvoltage events caused by lightning strikes or other electrical disturbances. These devices are designed to limit the voltage and divert the surge current away from sensitive PV equipment, such as solar panels and inverters, thus preventing damage and ensuring the long-term reliability of the system.

002443000

Image of ETITEC VS PV T12 1200/12,5

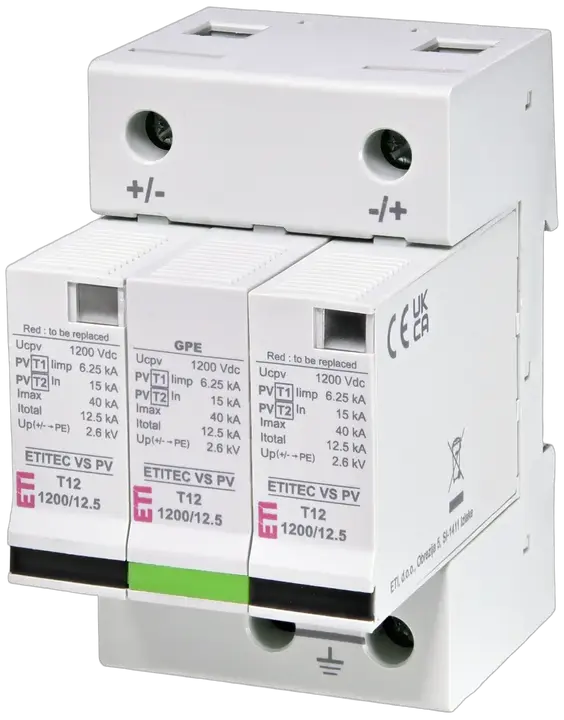

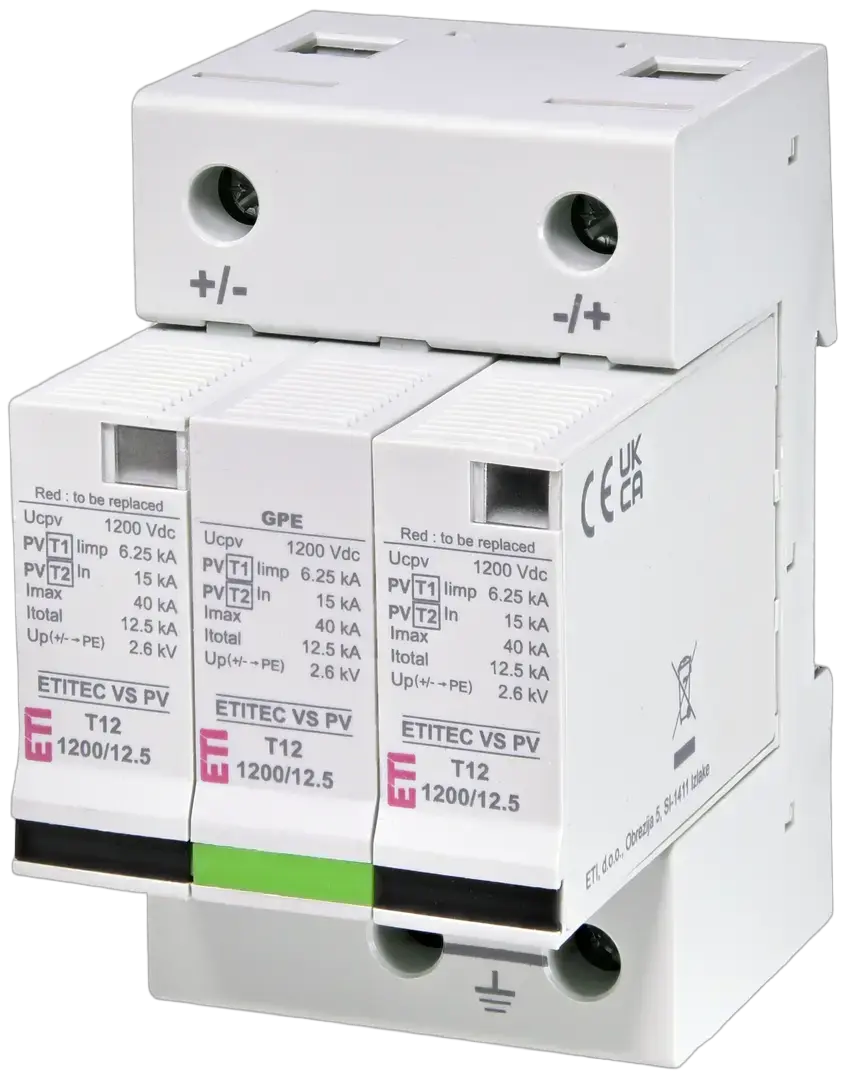

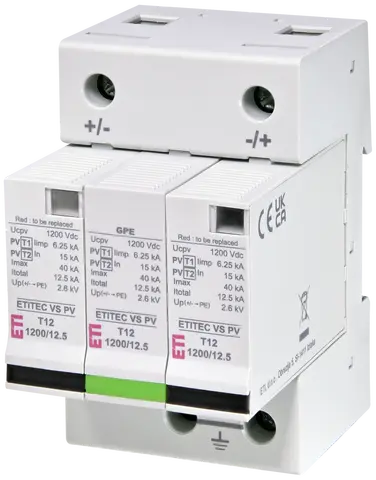

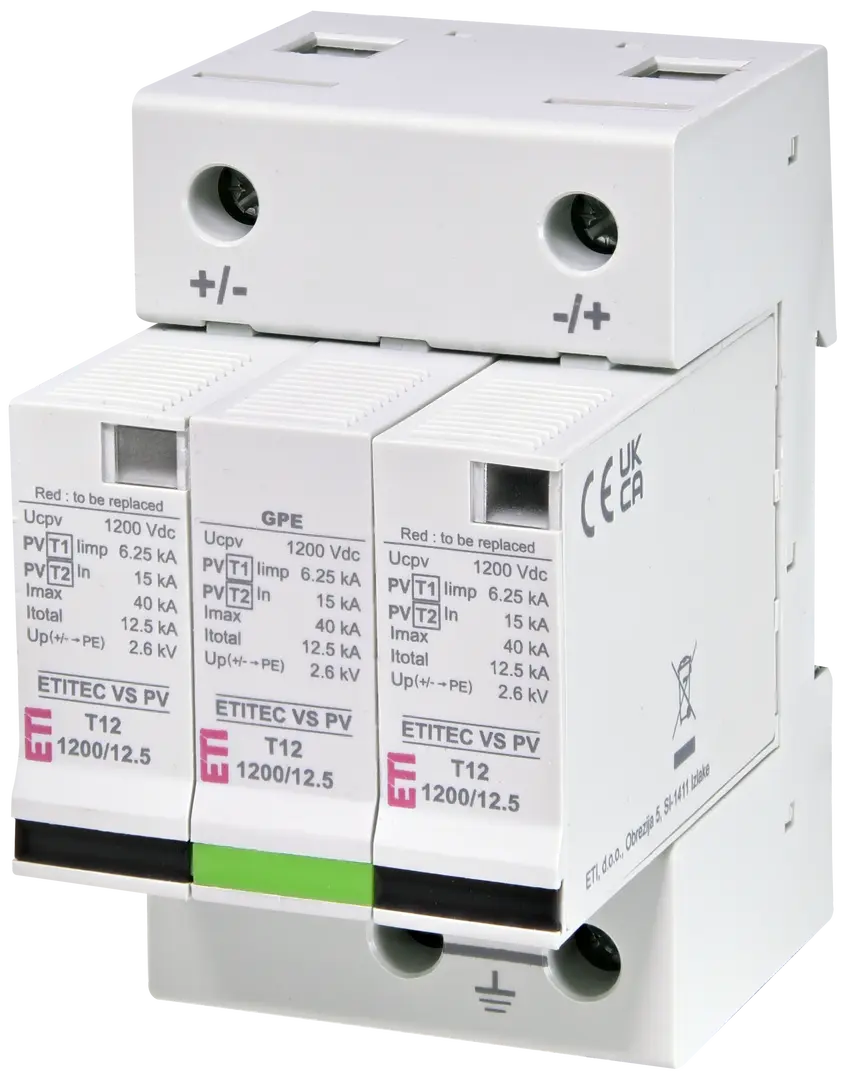

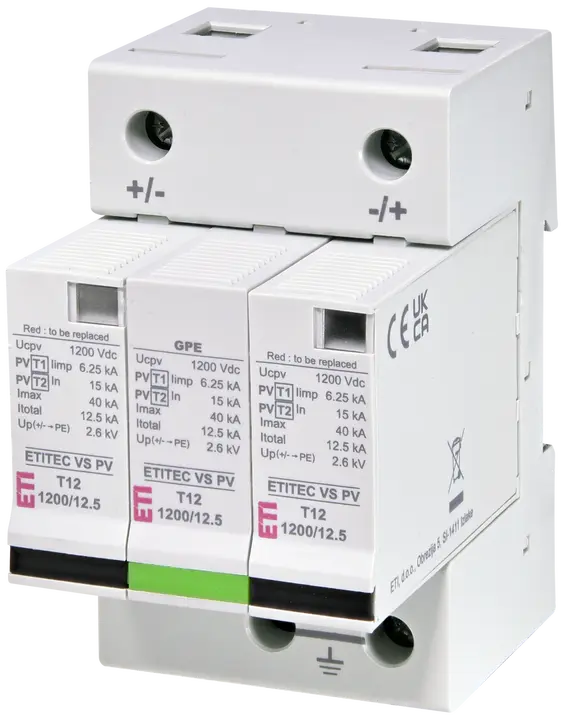

ETITEC VS PV T12 1200/12,5 Surge arrester

ETI Code:: 002443000
Function:: SPD
Current type:: DC
Surge arrester type:: T1, T2
Uc Continous Operating Voltage DC:: 1,200 V
Iimp(10/350) Impulse Current:: 12.5 kA
Iimp - Total Impulse Current (10/350):: 12.5 kA
Nominal Discharge Current (8/20 μs) In:: 20 kA
Max. Discharge current Imax, 8/20:: 40 kA
Up - Voltage Protection Level:: 1.3 kV
Remote signalisation:: No
Leakage Current:: No
Number of modules:: 3
Installation:: PV protection
Built-in depth:: 67 mm
Applied Technology:: MOV, GDT
IP rating:: IP20
Catalogue Group:: ETITEC V

Product

Net weight of the product: 0.415 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400100221
Basic packaging weight: 0.025 kg
Basic Packaging Dimensions Height: 83 mm
Basic Packaging Dimensions Width: 57 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0.473 dm³

Transport Packaging

Intermediate packaging quantity: 3 pcs
EAN code for a intermediate packaging: 3838400100238
Intermediate packaging weight: 1.455 kg
Intermediate Packaging Dimensions Height: 105 mm
Intermediate Packaging Dimensions Width: 90 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838400100245
Transport packaging weight: 17 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28.014 dm³
Pallet quantity: 960 pcs
Customs tariff: 85363030

System configuration other: Yes
Voltage switching spark gap technology: Yes
Voltage protection level (DC+/DC- - PE): 2.6 kV
Mounting method: DIN rail (top hat rail) 35 mm
Construction size: 3 modular spacing
Nominal voltage DC: 1,000 V
Lightning impulse current (10/350 µs): 6.25 kA
Max. PV-voltage: 1,200 V
Number of poles: 3
Voltage protection level (DC+ - DC-): 4.6 kV
Signalling at the device: Optical
System configuration DC: Yes
