PV surge arrestors, also known as surge protective devices (SPDs), are critical for safeguarding photovoltaic (PV) systems from overvoltage events caused by lightning strikes or other electrical disturbances. These devices are designed to limit the voltage and divert the surge current away from sensitive PV equipment, such as solar panels and inverters, thus preventing damage and ensuring the long-term reliability of the system.

002443001

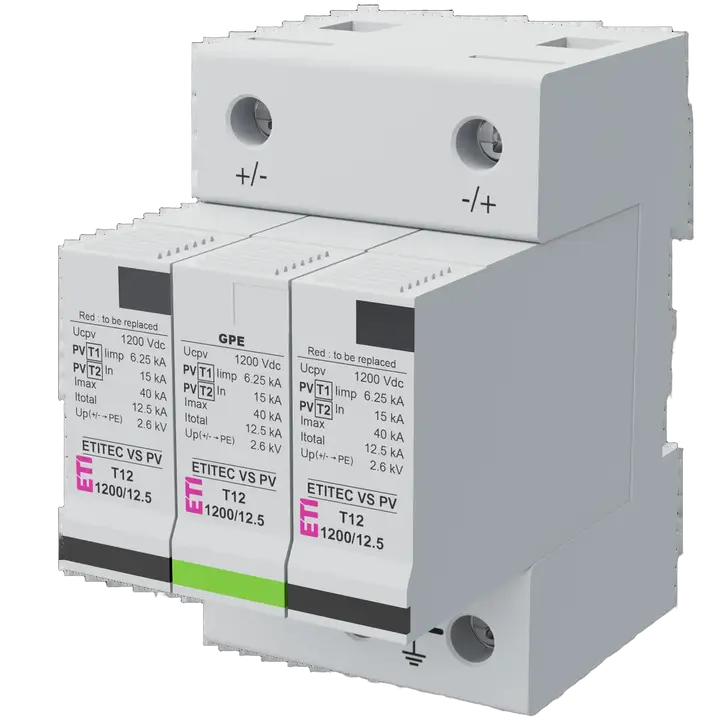

Image of ETITEC VS PV T12 1200/12,5 RC

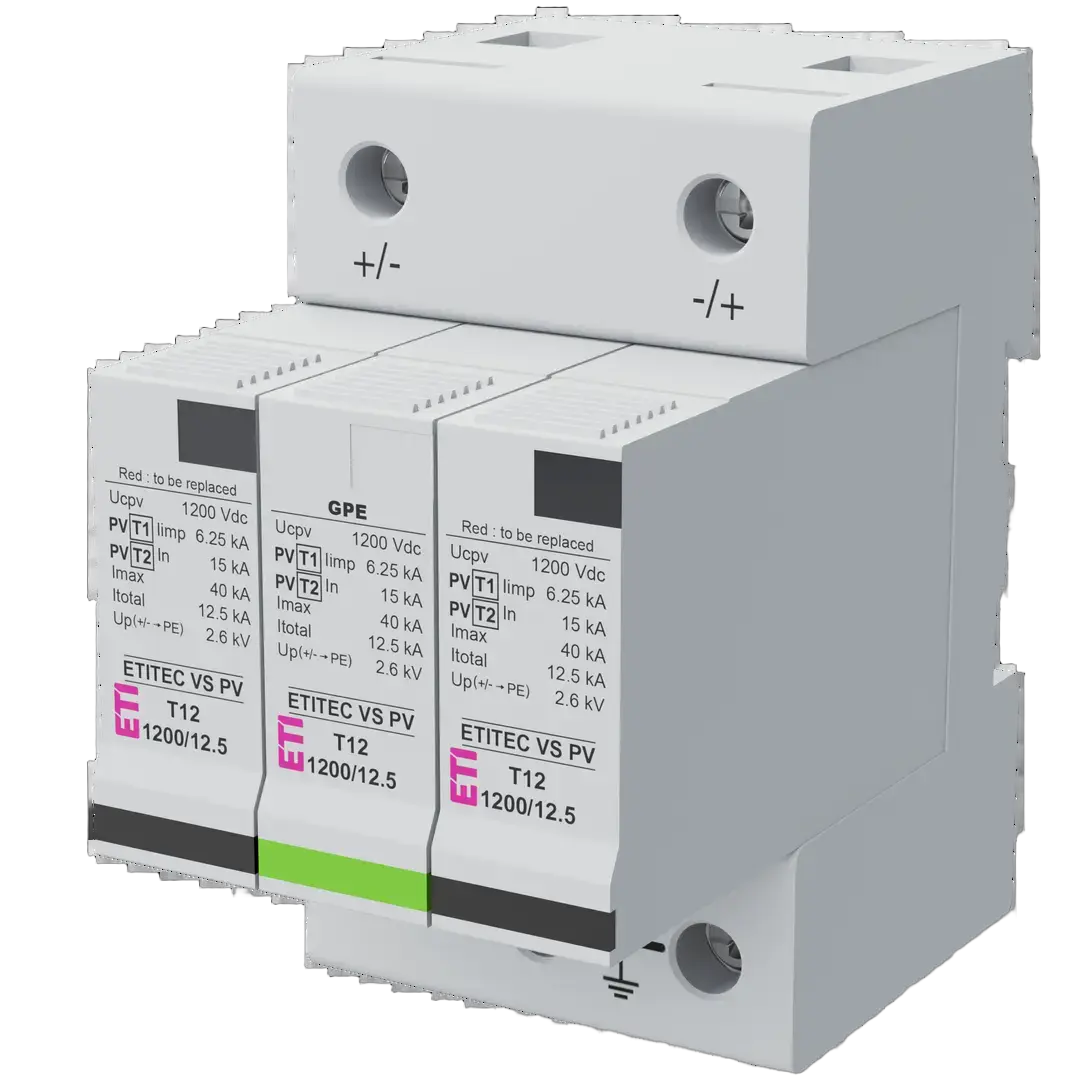

ETITEC VS PV T12 1200/12,5 RC Surge arrester

ETI Code:: 002443001
Function:: SPD
Current type:: DC
Surge arrester type:: T1, T2
Uc Continous Operating Voltage DC:: 1,200 V
Iimp(10/350) Impulse Current:: 6.25 kA
Iimp - Total Impulse Current (10/350):: 12.5 kA
Nominal Discharge Current (8/20 μs) In:: 15 kA
Max. Discharge current Imax, 8/20:: 40/60 kA
Up - Voltage Protection Level:: 1.3 kV
Remote signalisation:: Yes
Leakage Current:: No
Number of modules:: 3
Installation:: PV protection
Built-in depth:: 67 mm
Applied Technology:: GDT
IP rating:: IP40
Catalogue Group:: ETITEC V

Product

Net weight of the product: 0.421 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400100252
Basic packaging weight: 0.025 kg
Basic Packaging Dimensions Height: 83 mm
Basic Packaging Dimensions Width: 57 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0.473 dm³

Transport Packaging

Intermediate packaging quantity: 3 pcs
EAN code for a intermediate packaging: 3838400100269
Intermediate packaging weight: 1.473 kg
Intermediate Packaging Dimensions Height: 90 mm
Intermediate Packaging Dimensions Width: 105 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 24 pcs
EAN code for a transport packaging: 3838400100276
Transport packaging weight: 17.22 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28.014 dm³
Pallet quantity: 960 pcs
Customs tariff: 85363030

System configuration other: Yes
Remote signalling: Yes
Voltage switching spark gap technology: Yes
Degree of protection (IP): IP40
Number of poles: 3
System configuration DC: Yes

ETIM Classification – Version 9.0
