PV surge arrestors, also known as surge protective devices (SPDs), are critical for safeguarding photovoltaic (PV) systems from overvoltage events caused by lightning strikes or other electrical disturbances. These devices are designed to limit the voltage and divert the surge current away from sensitive PV equipment, such as solar panels and inverters, thus preventing damage and ensuring the long-term reliability of the system.

002443002

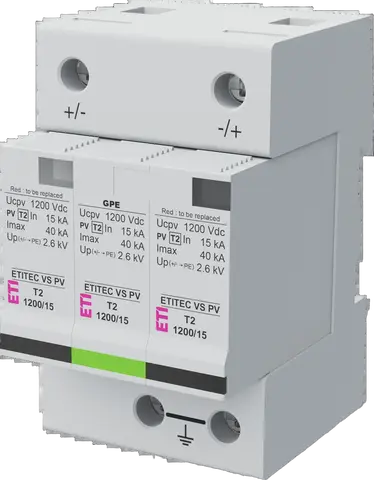

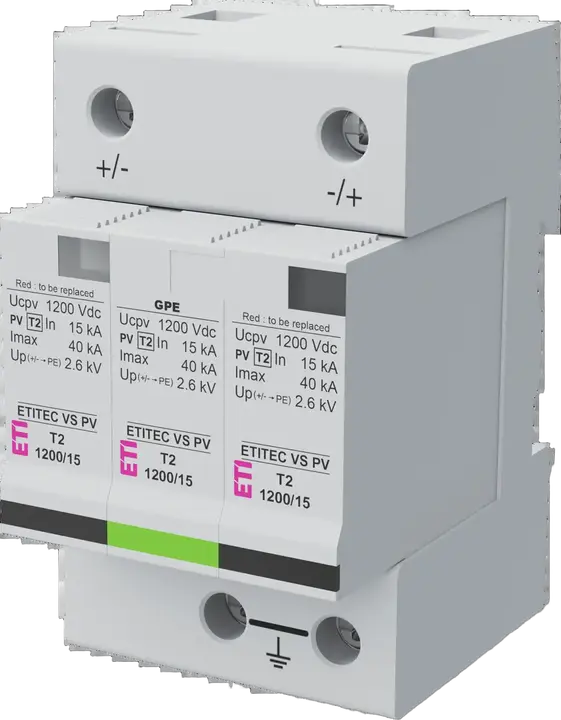

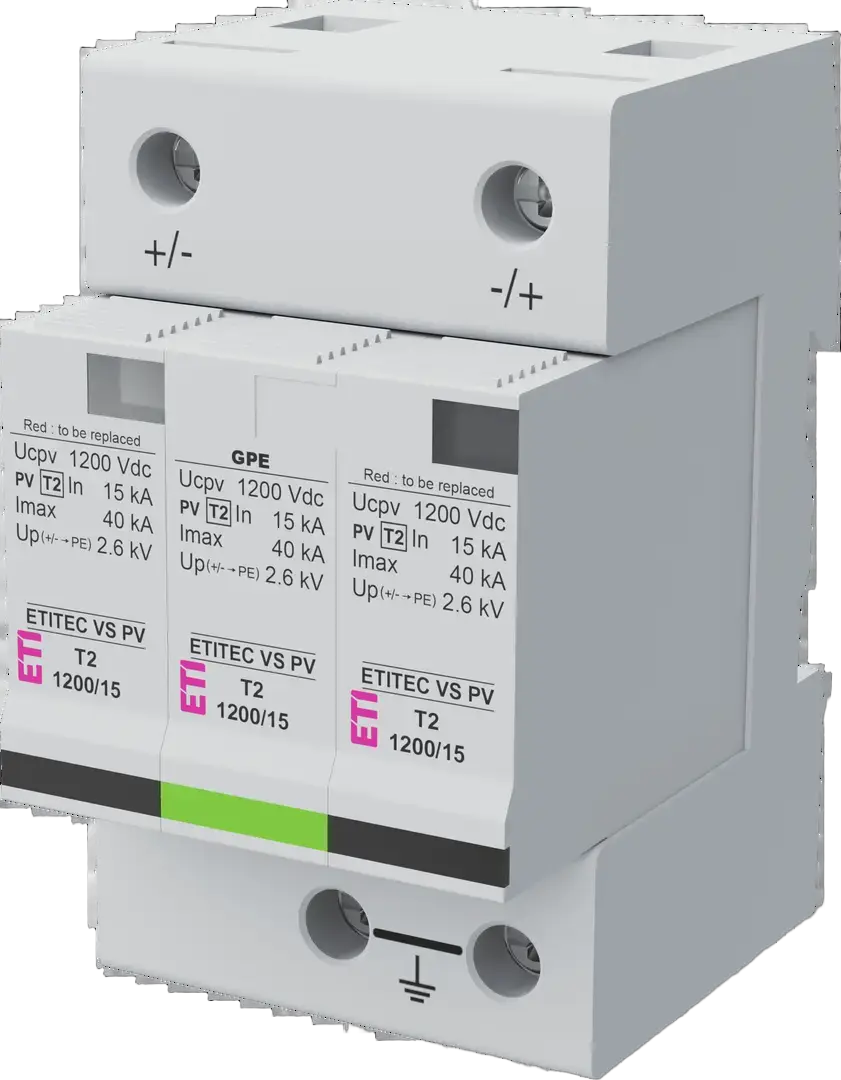

Image of ETITEC VS PV T2 1200/15

ETITEC VS PV T2 1200/15 Surge arrester

ETI Code:: 002443002
Function:: SPD
Current type:: DC
Surge arrester type:: T2
Uc Continous Operating Voltage DC:: 1,200 V
Nominal Discharge Current (8/20 μs) In:: 15 kA
Max. Discharge current Imax, 8/20:: 40 kA
Remote signalisation:: No
Leakage Current:: No
Number of modules:: 3
Installation:: PV protection
Built-in depth:: 67 mm
Applied Technology:: MOV, GDT
IP rating:: IP20
Catalogue Group:: ETITEC V PV T2

Technical data catalog

Product

Net weight of the product: 0.279 kg
Stock unit of measure: pcs

Basic Packaging

Basic packaging quantity: 1 pcs
EAN code for a basic packaging: 3838400100283
Basic packaging weight: 0.021 kg
Basic Packaging Dimensions Height: 57 mm
Basic Packaging Dimensions Width: 70 mm
Basic Packaging Dimensions Depth: 100 mm
Basic packaging volume: 0.399 dm³

Transport Packaging

Intermediate packaging quantity: 3 pcs
EAN code for a intermediate packaging: 3838400100290
Intermediate packaging weight: 1.031 kg
Intermediate Packaging Dimensions Height: 105 mm
Intermediate Packaging Dimensions Width: 78 mm
Intermediate Packaging Dimensions Depth: 183 mm
Transport packaging quantity: 36 pcs
EAN code for a transport packaging: 3838400100306
Transport packaging weight: 12.01 kg
Transport Packaging Dimensions Height: 290 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 460 mm
Transport packaging volume: 28.014 dm³
Pallet quantity: 1,440 pcs
Customs tariff: 85363030

System configuration other: Yes
Max. continuous voltage DC: 1,200 V
Number of poles: 3
System configuration DC: Yes

ETIM Classification – Version 9.0
