002470305

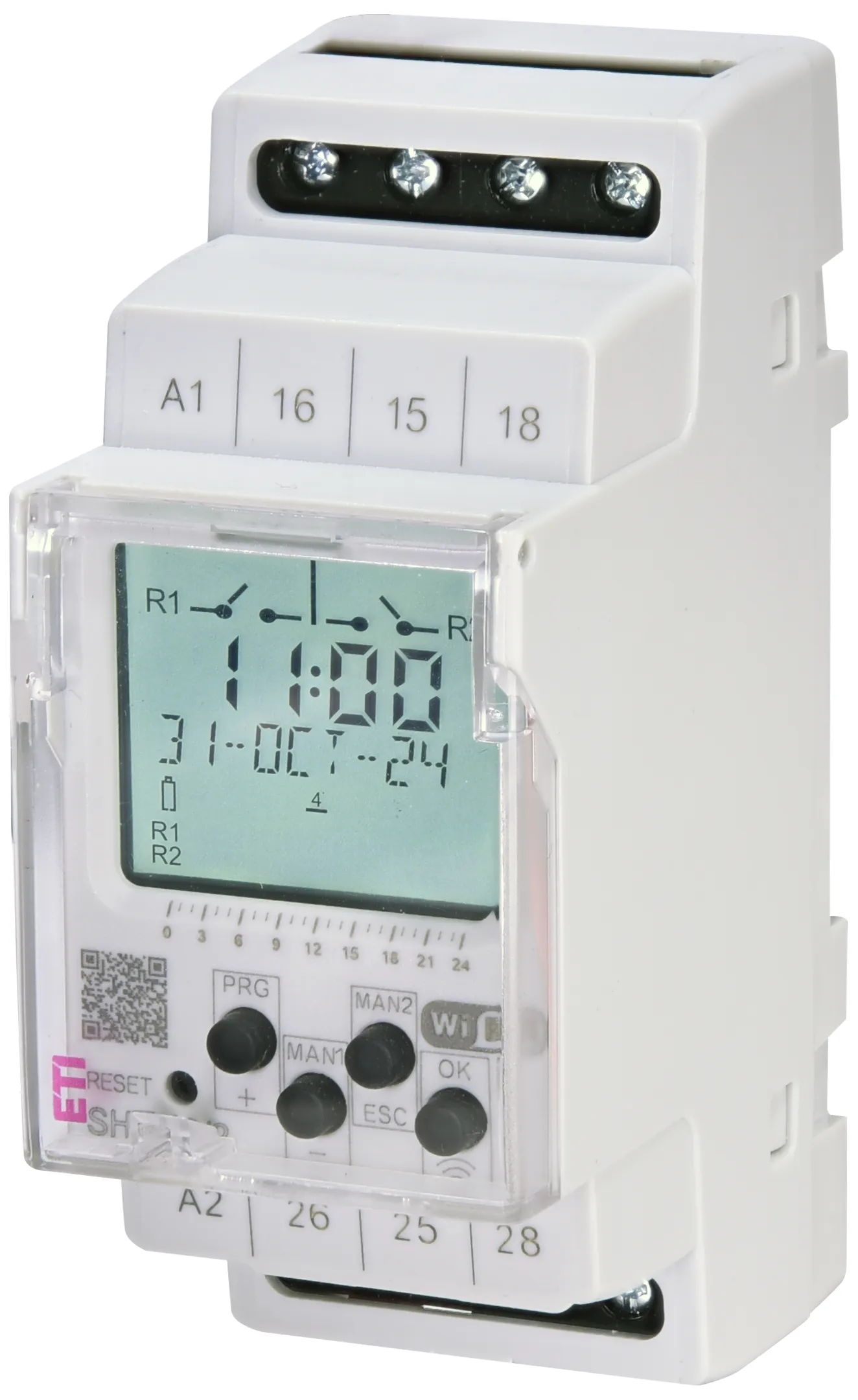

SHT-13/2 UNI Time relay - digital
- ETI Code:
- 002470305
- Communication:
- WiFi
- Time range:
- SUNRISE, SUNSET, FIXED TIME: ON/OFF, REDUC.
- Function:
- Time relay
- Application:
- Lighting control, HVAC systems, illuminated advertising, as well as building and industrial automation applications.
- Type of control:
- Time
- Supply voltage:
- 24-240 V
- Voltage type:
- AC/DC
- Max. contact current:
- 16 A
- Rated current:
- 16 A
- Rated frequency:
- 50/60 Hz
- Max. load capacity at AC1:
- 4,000 VA
- Clamping cross-section:
- 0.5-2.5 mm²
- Type of installation:
- DIN rail 35 mm
- IP rating:
- IP40, IP20
- No. of NO contacts:
- 2
- No. of CO contacts:
- 2
- No. of NC contacts:
- 2
14 Logistics
Product
- Net weight of the product
- 0.287 kg
- Net width
- 112.6 mm
- Net height
- 119.9 mm
- Net depth
- 63.17 mm
- Stock unit of measure
- pcs
Transport Packaging
- Transport packaging quantity
- 1 pcs
- EAN code for a transport packaging
- 3838400117106
- Transport packaging weight
- 0.287 kg
- Transport Packaging Dimensions Height
- 25 mm
- Transport Packaging Dimensions Width
- 97 mm
- Transport Packaging Dimensions Depth
- 70 mm
- Transport packaging volume
- 0.17 dm³
- Pallet quantity
- 2,090 pcs
- Customs tariff
- 85364900
37 ETIM
- Number of contacts
- 2
- Impulse program
- ✓
- Quartz controlled
- ✓
- Width
- 35 mm
- Suitable for manual operation
- ✓
- Number of memory locations
- 200
- Annual program
- ✓
- Weekly program
- ✓
- Astro program
- ✓
- Number of channels
- 2
- Degree of protection (IP)
- IP20
- Contact type
- Change-over contact (NO/NC)
- Mounting method
- DIN rail
- Automatic switching summer-/winter time
- ✓
- Accuracy per day
- 1 s
- Holiday program
- ✓
- Voltage type (supply voltage)
- AC/DC
- Random program
- ✓
- Autonomy in hours
- 26,280
- Shortest switching time channel 2
- 1 min
- Autonomy in years
- 3
- Hour meter
- ✓
- 24 h program
- ✓
- Nominal switching current at 250 V AC
- 16 A
- External programming
- ✓
- Depth
- 64 mm
- Text guidance in display
- ✓
- Cycle program
- ✓
- Shortest switching time channel 1
- 1 min
- Potential free switch contact
- ✓
- Height
- 90 mm
- Width in number of modular spacings
- 2
- 60 min program
- ✓
- Frequency supply voltage(Min)
- 50 Hz
- Supply voltage(Min)
- 24 V
- Frequency supply voltage(Max)
- 60 Hz
- Supply voltage(Max)
- 230 V
ETIM Classification – Version 9.0
