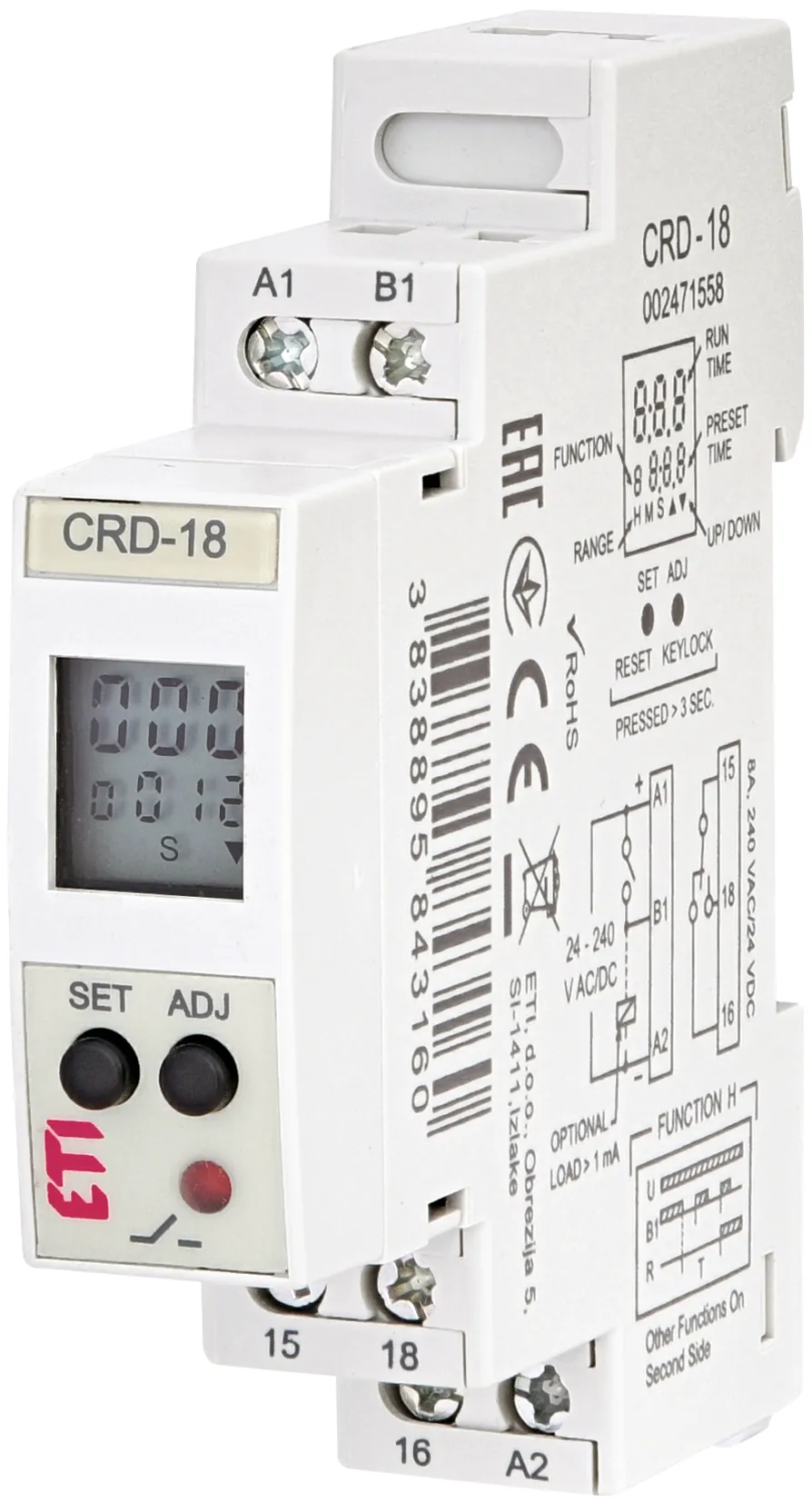

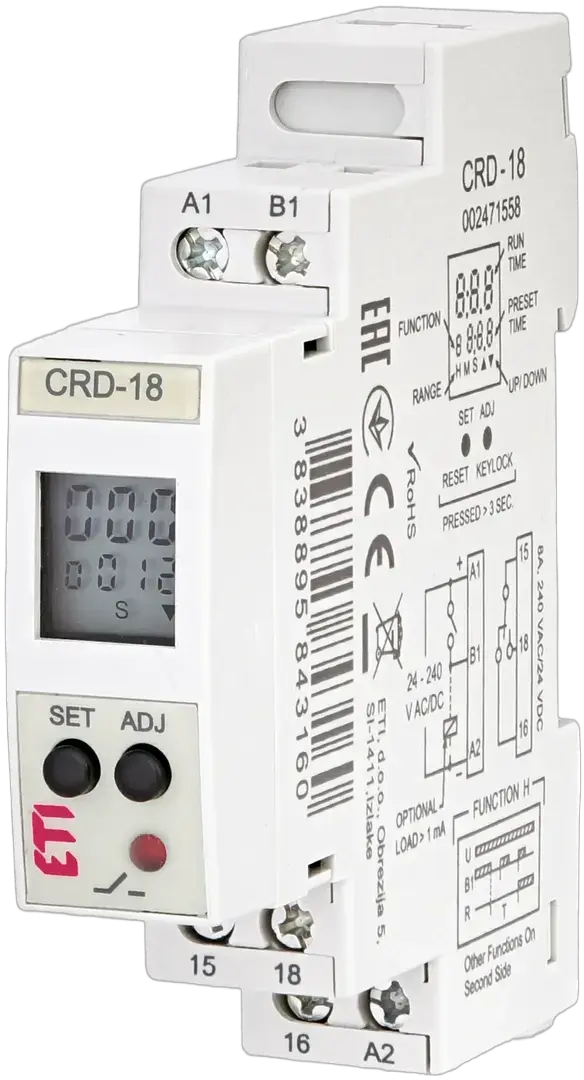

Time relay CRD-18 002471558
Specifications
- ETI Code:
- 002471558
- Description:
- CRD-18
- Class name:
- Time relay
- Function:
- Time relay
- Rated current (A):
- 8A
- Voltage type:
- AC/DC
- Number of CO contacts:
- 1
- Supply voltage (V):
- 24V-240V
- Number of contacts:
- 1
- Number of functions:
- 18
Documents
Logistic Data
Product
- Net weight of the product
- 0.085 kg
- Customs tariff
- 91070000
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 3838895843160
- Basic packaging weight
- 0.085 kg
Transport packaging
- Transport packaging quantity
- 150
- EAN code for a transport packaging
- 3838895843177
- Transport packaging weight
- 16.2 kg
- Pallet quantity
- 2100
ETIM Clasification
- Classification
- EC002305
- Class name
- Digital time switch for distribution board
- Mounting method
- DIN rail
- Number of channels
- 1
- Supply voltage
- 24…240V
- Voltage type (supply voltage)
- AC/DC
- Frequency supply voltage
- 48…62Hz
- Text guidance in display
- Yes
- Impulse program
- Yes
- Cycle program
- Yes
- Quartz controlled
- Yes
- Suitable for manual operation
- Yes
- Nominal switching current at 250 V AC
- 8A
- Potential free switch contact
- Yes
- Degree of protection (IP)
- IP40
- Width in number of modular spacings
- 1
- Width
- 18mm
- Height
- 85mm
- Depth
- 76mm

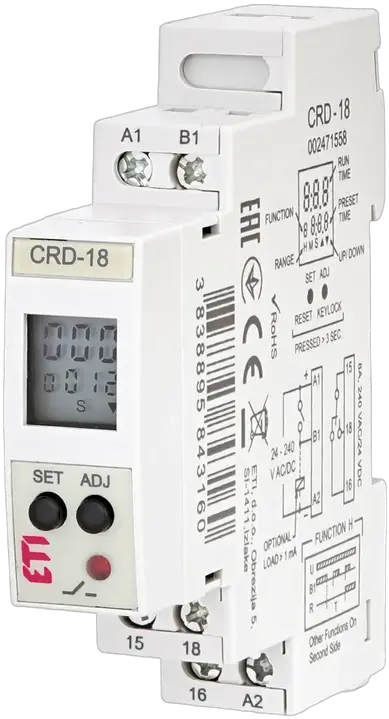

CRD-18
