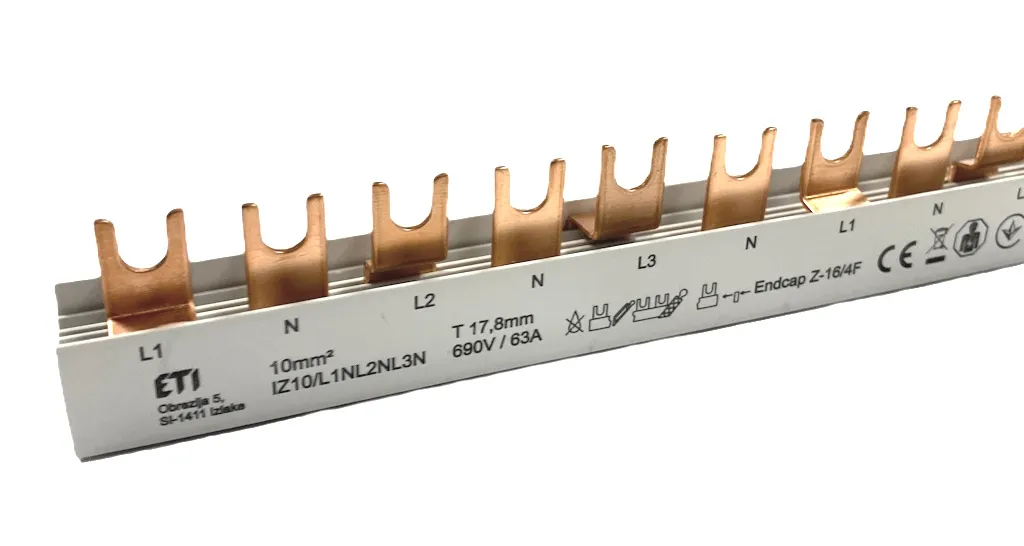

Cu rail IZ10/L1NL2NL3N/54 002921279
Specifications
- ETI Code:
- 002921279
- Description:
- IZ10/L1NL2NL3N/54
- Class name:
- Cu rail
- Function:
- Section rails
- Type:
- Fork Type
- Rated current (A):
- 63
- Rated voltage (V):
- 500
- Rated cross section:
- 10
- Lenght in modules:
- 54
- Number of phases:
- 4
- Type accessories:
- Cu rail
- For use with:
- KZS-2M, ETIMAT 1P+N
Documents
Logistic Data
Product
- EAN code for a single product
- 3838895880226
- Net weight of the product
- 0.563 kg
- Customs tariff
- 85369095
- logis_net_width
- 965 mm
- logis_net_height
- 31 mm
- logis_net_depth
- 20 mm
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 3838895863564
- Transport packaging weight
- 5.41 kg
- Pallet quantity
- 1470
ETIM Clasification
- Classification
- EC000215
- Class name
- Phase busbar
- Number of phases
- 4
- Module width
- 17,8mm
- Cross section
- 10mm²
- Number of modular spacings
- 54
- Type of electric connection
- Fork
- Insulated
- Yes
- Max. rated operation voltage Ue
- 500V
- Suitable for devices with N-conductor
- Yes
