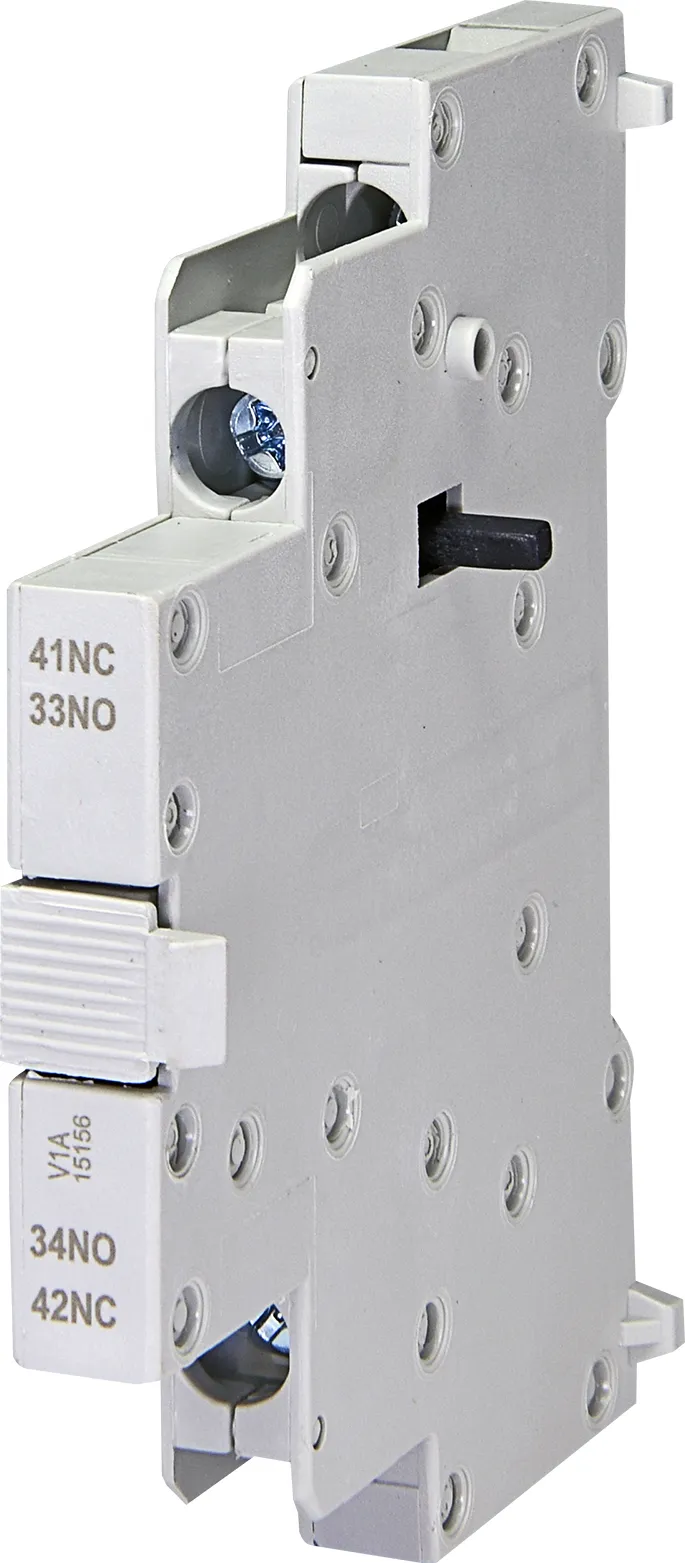

Aux.contacts ACBSE-11 004648022
Specifications
- ETI Code:
- 004648022
- Description:
- ACBSE-11
- Class name:
- Aux.contacts
- Function accessories:
- Left side mountable contact block
- For use with:
- MPE 25
Documents
Logistic Data
Product
- Customs tariff
- 85365080
- logis_net_width
- 15 mm
- logis_net_height
- 90 mm
- logis_net_depth
- 69 mm
Basic packaging
- Basic packaging quantity
- 1
- EAN code for a basic packaging
- 7890355188392
- Basic packaging weight
- 0.046 kg
Transport packaging
- Transport packaging quantity
- 10
- EAN code for a transport packaging
- 17890355188399
- Transport packaging weight
- 0.473 kg
- Pallet quantity
- 1600
ETIM Clasification
- Classification
- EC000041
- Class name
- Auxiliary contact block
- Number of contacts as normally open contact
- 1
- Number of contacts as normally closed contact
- 1
- Rated operation current Ie at AC-15, 230 V
- 4A
- Type of electric connection
- Screw connection
- Mounting method
- Side mounting
