002471103

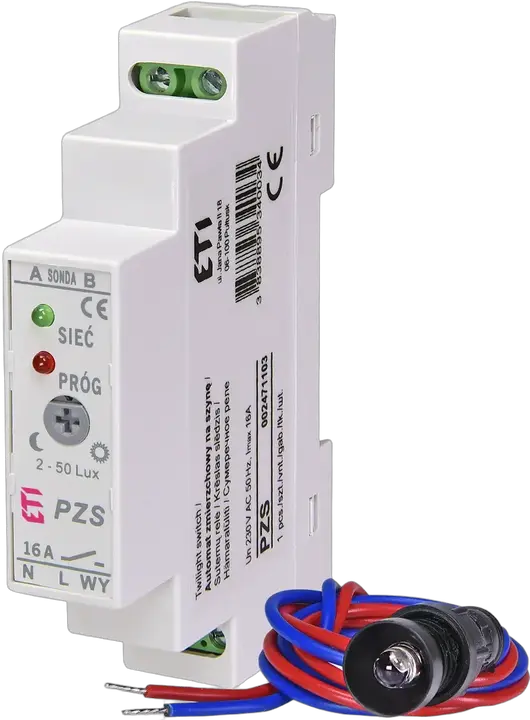

PZS Twilight switch
- ETI Code:
- 002471103
- Rated AC voltage:
- 230 V
- Rated DC voltage:
- 230 V
- Depth:
- 68 mm
- Catalogue Group:
- Twillight and staircase switches
- Catalogue Subgroup:
- Twilight switch & Twilight switch sensor
- Rated Frequency:
- 50 Hz
- Type of Installation:
- TH 35
- IP rating:
- IP20
- Type description:
- Twilight switch PZS
- Function:
- Monitoring and Control relays
- Supply Voltage:
- 180-230 V
- Luminous flux:
- 2-50 lx
- Number of contacts:
- 1
- Rated current:
- 16 A
- Maximum load capacity at AC1:
- 4,000 VA
- Voltage type:
- AC
- Category:
- Twillight and staircase switches
- No. of NO contacts:
- 2
3 Documents
18 Logistics
Product
- Net weight of the product
- 0.065 kg
- Net width
- 19 mm
- Net height
- 66 mm
- Net depth
- 93 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 1 pcs
- EAN code for a basic packaging
- 3838895340164
- Basic packaging weight
- 0.71 kg
- Basic packaging volume
- 1 dm³
Transport Packaging
- Intermediate packaging quantity
- 1 pcs
- EAN code for a intermediate packaging
- 3838895340034
- Intermediate packaging weight
- 0.07 kg
- Transport packaging quantity
- 6 pcs
- EAN code for a transport packaging
- 3838895792291
- Transport packaging weight
- 0.426 kg
- Transport packaging volume
- 0.6 dm³
- Pallet quantity
- 18,000 pcs
- Customs tariff
- 85364900
12 ETIM
- Built-in depth
- 68 mm
- Degree of protection (IP)
- IP20
- Mounting method
- DIN rail
- Rated switch current
- 16 A
- Mounting method light sensor
- Built-in
- Rated voltage
- 230 V
- Degree of protection (IP) light sensor
- IP65
- Width in number of modular spacings
- 1
- Adjustment range brightness value(Min)
- 2 lx
- Rated frequency(Min)
- 50 Hz
- Rated frequency(Max)
- 50 Hz
- Adjustment range brightness value(Max)
- 200 lx
ETIM Classification – Version 9.0
2 Diagrams
22 Tags
002471103Twilight switchPZSEVE/ETIRELControl equipmentRelaysRelaysTwilight switchTwilight switchInternationalAutomation, signaling and control devicesTwillight and staircase switches ETIRELLuminous flux: 2 lx-50 lxVoltage type: ACNumber of contacts: 1Function: Monitoring and Control relaysMaximum load capacity at AC1: 4000 VANo. of NO contacts: 2Supply Voltage: 180 V-230 VRated current: 16 A/16 ACategory: Twillight and staircase switchesTwilight switch TOWAR Function: Monitoring and Control relays Supply Voltage: 180 V-230 V Luminous flux: 2 lx-50 lx Number of contacts: 1 Rated current: 16 A/16 A Maximum load capacity at AC1: 4000 VA Voltage type: AC Category: Twillight and staircase switches No. of NO contacts: 2
