001102413

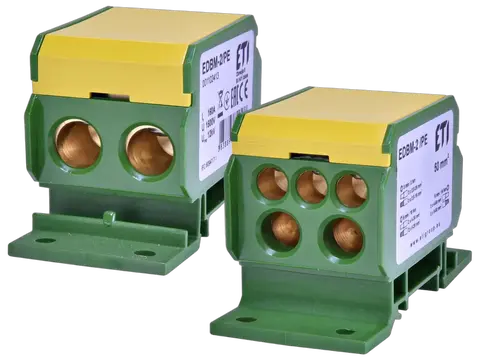

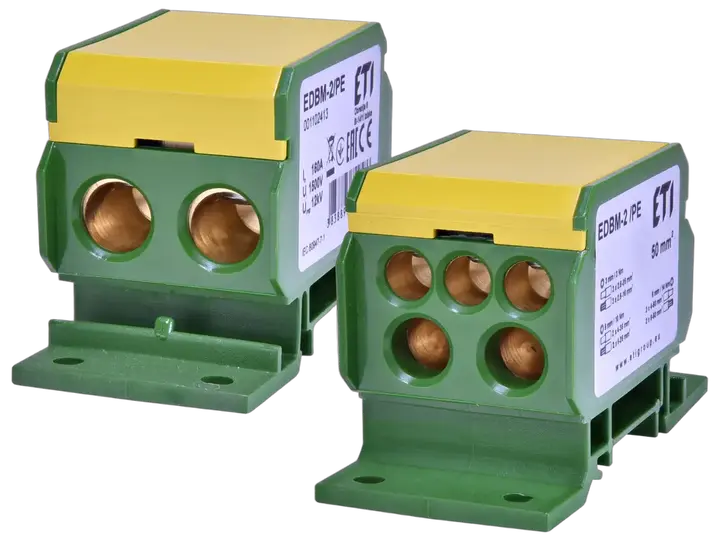

EDBM-2/PE Distribution block
- ETI Code:
- 001102413
- Type accessories:
- EDB DIN rail distribution blocks
- Catalogue Group:
- EDB DIN rail distribution blocks
- Catalogue Subgroup:
- EDBM DIN rail distribution blocks
- Max input cross-section:
- 50 mm²
- Source:
- PE
- Type of Installation:
- TH 35
- Rated current:
- 160 A
- Rated AC voltage:
- 1500 V
- Rated DC voltage:
- 1500 V
- Rated Insulation Voltage:
- 1,500 V
- Short circuit capacity:
- 12 kA
- Height:
- 44 mm
- Width:
- 40 mm
- Depth:
- 80 mm
- Rated cross section:
- 2.5-50 mm²
- Body material:
- PA6 GF25
- Clamp material:
- MO-58
4 Documents
16 Logistics
Product
- EAN code for a single product
- 3838895742586
- Net weight of the product
- 0.23 kg
- Net width
- 40 mm
- Net height
- 79 mm
- Net depth
- 50.6 mm
- Stock unit of measure
- pcs
Basic Packaging
- Basic packaging quantity
- 5 pcs
- EAN code for a basic packaging
- 3838895741299
- Basic packaging weight
- 1.16 kg
- Basic packaging volume
- 1.05 dm³
Transport Packaging
- Transport packaging quantity
- 100 pcs
- EAN code for a transport packaging
- 3838895741305
- Transport packaging weight
- 23.2 kg
- Transport packaging volume
- 21 dm³
- Pallet quantity
- 3,000 pcs
- Customs tariff
- 85369010
14 ETIM
- Width
- 40 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 160 A
- Mounting method
- Other
- Number of poles
- 1
- Number of clamp positions per pole
- 7
- Depth
- 80 mm
- Rated voltage
- 1,500 V
- Colour
- Green/yellow
- Height
- 44 mm
- Connectable conductor cross section solid-core(Min)
- 4 mm²
- Operating temperature(Min)
- -25 °C
- Connectable conductor cross section solid-core(Max)
- 50 mm²
- Operating temperature(Max)
- 80 °C
ETIM Classification – Version 9.0
