DIN rail distribution blocks EDB provide a safe and organized solution for connecting and distributing electrical power in low-voltage applications. These blocks are designed for mounting on standard DIN rails, ensuring compatibility with various electrical enclosures and panels. They feature a robust construction and offer numerous advantages for efficient and reliable power distribution.

001102440

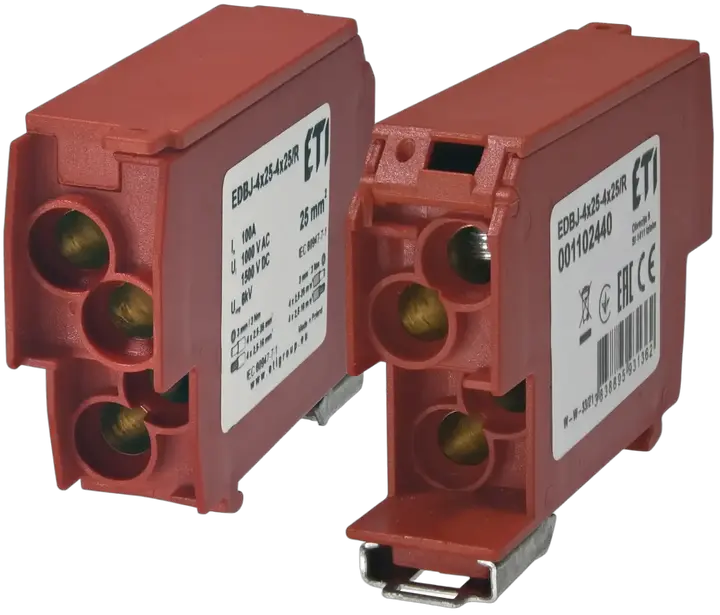

Image of EDBJ-4x25-4x25/R

EDBJ-4x25-4x25/R Distribution block

ETI Code:: 001102440
Type of Installation:: TH 35
Rated current:: 100 A
Rated AC voltage:: 415 V
Rated DC voltage:: 415 V
Rated Insulation Voltage:: 1,000 V
Short circuit capacity:: 10 kA
Height:: 80.3 mm
Width:: 17.8 mm
Depth:: 50 mm
Rated cross section:: 2.5-25 mm²
Body material:: PC/ABS
Clamp material:: MO-58
Working Temperature:: -30-80 °C

Product

Net weight of the product: 0.125 kg
Stock unit of measure: pcs
EAN code for a single product: 3838895931362

Basic Packaging

EAN code for a basic packaging: 3838400166265
Basic packaging weight: 1.31 kg
Basic Packaging Dimensions Depth: 52 mm
Basic Packaging Dimensions Height: 83 mm
Basic packaging volume: 0.786 dm³
Basic Packaging Dimensions Width: 182 mm
Basic packaging quantity: 10 pcs

Transport Packaging

Transport packaging weight: 30 kg
Transport packaging volume: 19.992 dm³
Transport packaging quantity: 240 pcs
Customs tariff: 85369010
Transport Packaging Dimensions Height: 280 mm
Transport Packaging Dimensions Width: 210 mm
Transport Packaging Dimensions Depth: 340 mm
EAN code for a transport packaging: 3838895931256
Pallet quantity: 4,800 pcs

Width: 17.8 mm
Rated current In: 100 A
Mounting method: Other
Operating temperature(Max): 80 °C
Depth: 50 mm
Operating temperature(Min): -30 °C
Rated voltage: 415 V
Height: 80.3 mm

ETIM Classification – Version 9.0
