001102436

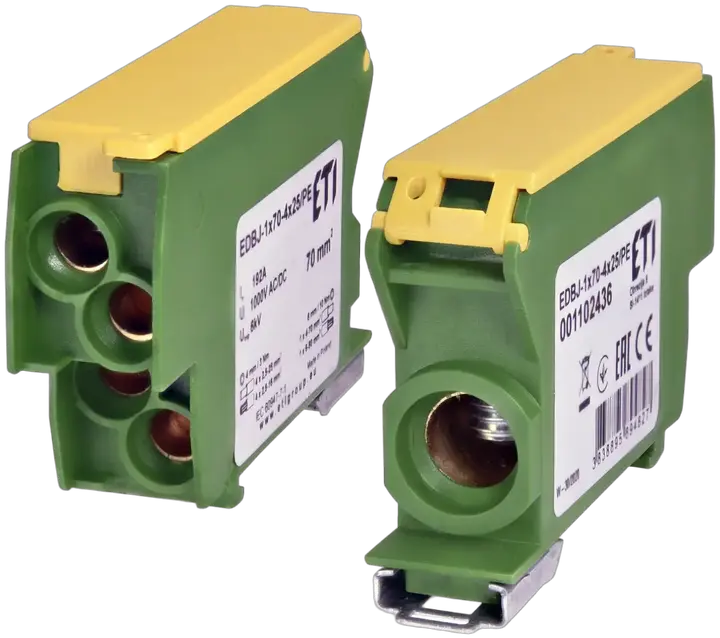

EDBJ-1x70-4x25/PE Distribution block
- ETI Code:
- 001102436
- Function:
- Razdelilni blok
- Type of Installation:
- TH 35
- Rated current:
- 192 A
- Rated AC voltage:
- 415 V
- Rated DC voltage:
- 415 V
- Rated Insulation Voltage:
- 1,000 V
- Short circuit capacity:
- 10 kA
- Height:
- 79.5 mm
- Width:
- 17.8 mm
- Depth:
- 50 mm
- Rated cross section:
- 2.5-70 mm²
- Body material:
- PC/ABS
- Clamp material:
- MO-58
- Working Temperature:
- -30-80 °C
5 Documents
22 Logistics
Product
- Net depth
- 50.35 mm
- Net weight of the product
- 0.117 kg
- Net width
- 17.8 mm
- Net height
- 81 mm
- Stock unit of measure
- pcs
- EAN code for a single product
- 3838895894827
Basic Packaging
- EAN code for a basic packaging
- 3838400166258
- Basic packaging weight
- 1.16 kg
- Basic Packaging Dimensions Depth
- 52 mm
- Basic Packaging Dimensions Height
- 83 mm
- Basic packaging volume
- 0.786 dm³
- Basic Packaging Dimensions Width
- 182 mm
- Basic packaging quantity
- 10 pcs
Transport Packaging
- Transport packaging weight
- 28.08 kg
- Transport packaging volume
- 19.992 dm³
- Transport packaging quantity
- 240 pcs
- Customs tariff
- 85369010
- Transport Packaging Dimensions Height
- 280 mm
- Transport Packaging Dimensions Width
- 210 mm
- Transport Packaging Dimensions Depth
- 340 mm
- EAN code for a transport packaging
- 3838895894810
- Pallet quantity
- 5,040 pcs
15 ETIM
- Connectable conductor cross section solid-core(Max)
- 70 mm²
- Width
- 17.8 mm
- Material insulation body
- Thermoplastic
- Rated current In
- 192 A
- Mounting method
- Other
- Connectable conductor cross section solid-core(Min)
- 4 mm²
- Operating temperature(Max)
- 80 °C
- Number of poles
- 1
- Number of clamp positions per pole
- 5
- Depth
- 50 mm
- Operating temperature(Min)
- -30 °C
- Rated voltage
- 415 V
- Colour
- Green/yellow
- Height
- 79.5 mm
- Inflammability class of insulation material according to with UL94
- V0
ETIM Classification – Version 9.0
